1000kg Holding Force Electromagnetic Lock System , EM200B Electric Bolt Lock

  • 1000kg Holding Force Electromagnetic Lock System , EM200B Electric Bolt Lock
  • 1000kg Holding Force Electromagnetic Lock System , EM200B Electric Bolt Lock
  • 1000kg Holding Force Electromagnetic Lock System , EM200B Electric Bolt Lock
  • 1000kg Holding Force Electromagnetic Lock System , EM200B Electric Bolt Lock
  • 1000kg Holding Force Electromagnetic Lock System , EM200B Electric Bolt Lock
Place of Origin CHINA
Brand Name VANSHUI
Certification CE,FCC
Model Number EM200B
Minimum Order Quantity 1PCS
Price NEGOTIATION
Packaging Details Single package size: 25X10X4 cm,Weight:0.7KG
Delivery Time 5-8 working days
Payment Terms Western Union, MoneyGram, T/T, L/C, D/A
Supply Ability 10000PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Current Draw Starting Status 400mA;Standby Status400mA Fail Safe Power To Lock
Suitable For Application All Type Of Door, No Frame Door Can Choose Bracket Holding Force 1000KG
Surface Temp -10~+25°C(14-131F) Opening Mode 180 Degree Swinging Door
Quality Aluminum Panel With Strongly Style And Stainless Steel
High Light

em lock

,

electromagnetic door lock
Leave a Message
Product Description

1000kg Holding Force Electric Bolt Lock For Access Control System





Features

1.Safe & Durable.
2.Low Power, Environmental Protection.
3.Long Life with 500000 cycles.
4.MOV Provides Reverse Current Protection.
5.Superior Strength Aluminum Alloy, Solid Stainless Steel Bolt.
6.Double protection for loading current.

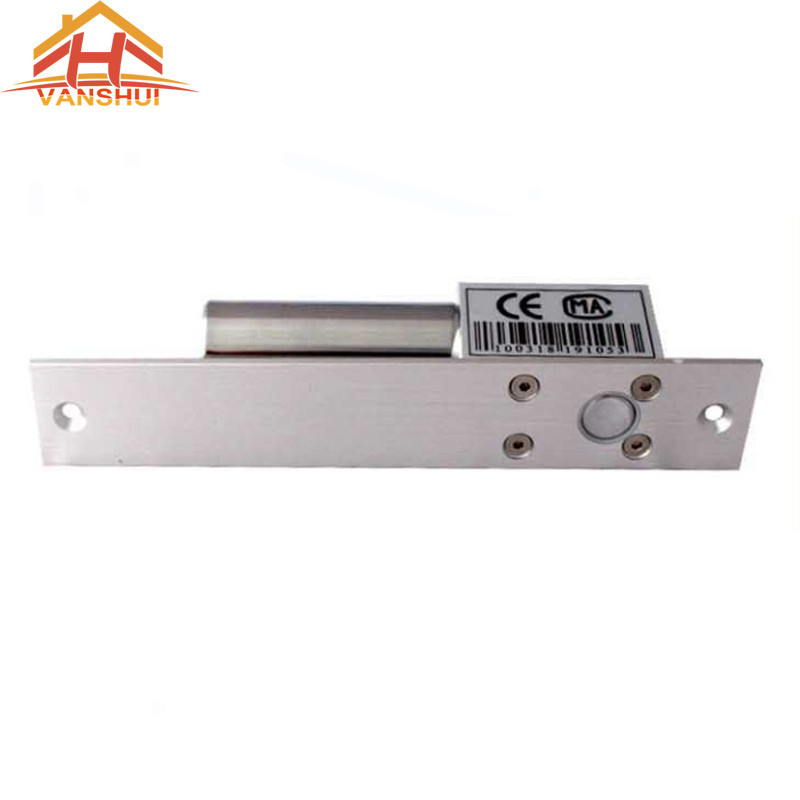

1000kg Holding Force Electromagnetic Lock System , EM200B Electric Bolt Lock 0

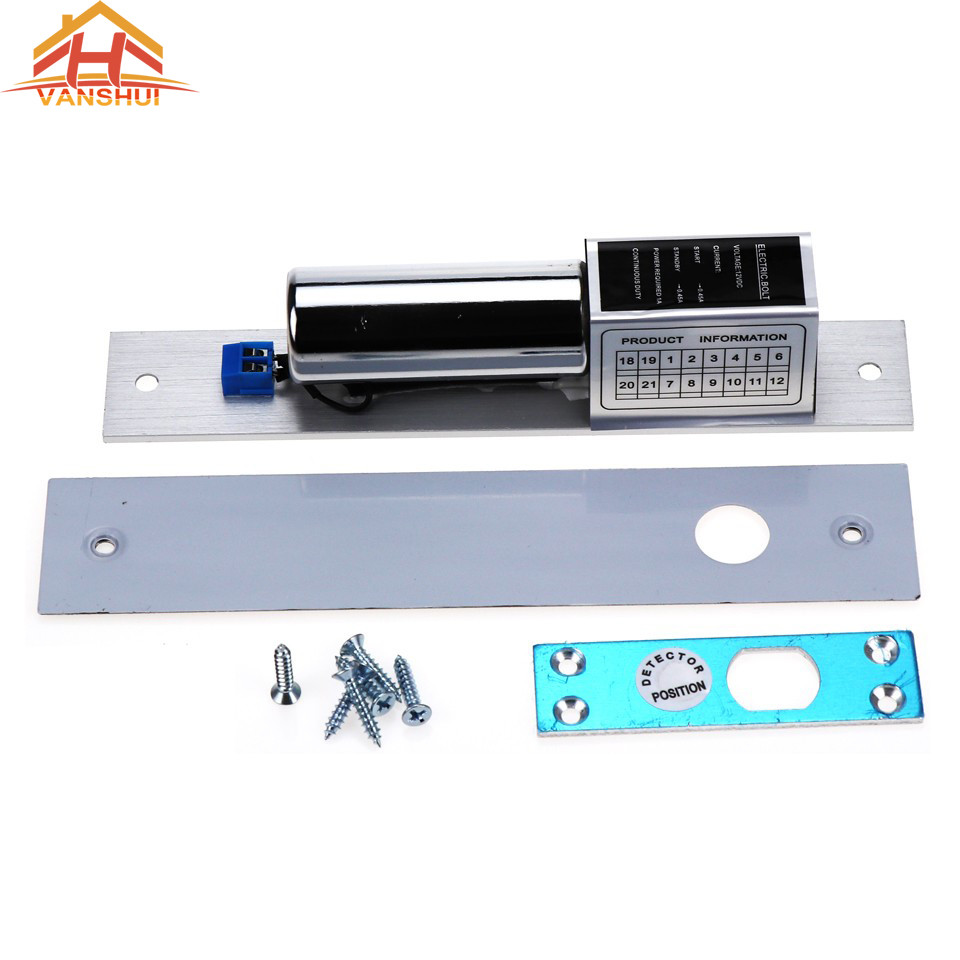

1000kg Holding Force Electromagnetic Lock System , EM200B Electric Bolt Lock 1

Specification



Model EB200B(Electric Bolt)
Lock Type Magnetic Switch for sensor to lock
Power supply 12VDC
Signal Output Without signal output
Current draw Starting Status 900mA
Standby Status 120mA
Fail Safe Power to lock
Door lock delay time unavailable
Suitable for Application all type of door, no frame door can choose bracket
Face plate 200L×35W×40H(mm)
Strike plate 90L×25W×2H(mm)
Holding Force Polishing housing,1000KG Holding Force
Surface temp Low temperature
Operating temp -10~+25°C(14-131F)
Operating Humidity 0-90%(non-condensing)
Opening mode 180 degree swinging door
Certification CE&FCC approved
Quality Aluminum panel with strongly style and stainless steel
Application Wooden door, glass door, metal door, fireproof door, etc
Quality Guarantee For 2-3 years (except that man-made and force majeure)

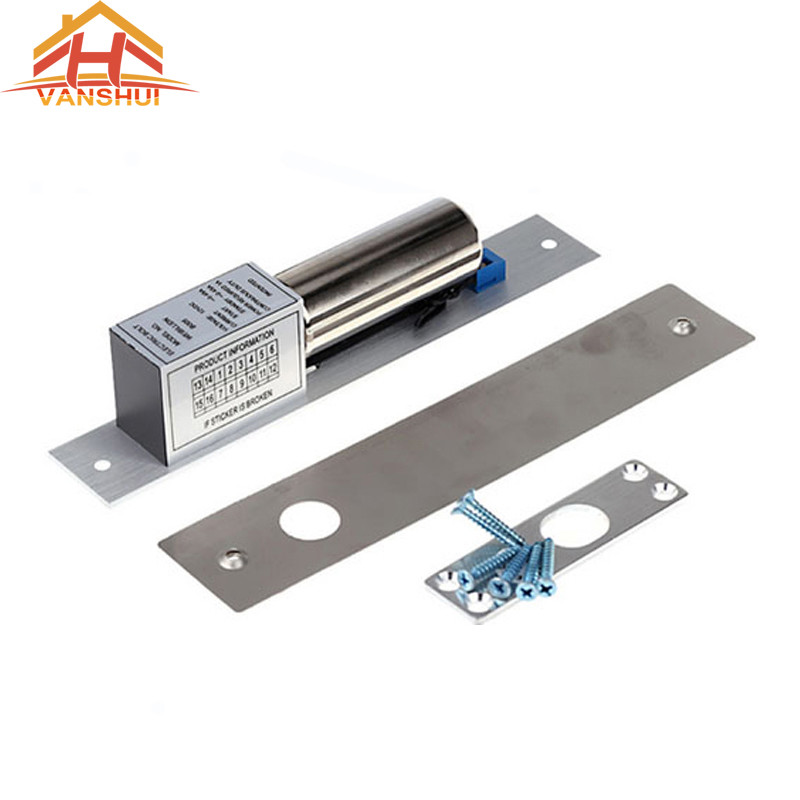

1000kg Holding Force Electromagnetic Lock System , EM200B Electric Bolt Lock 2
