Fingerprint 125KHz Card Smart Door Access Control System with Touch Keypad Waterproof IP66 WIFI Tuya Access Control Read

Place of Origin SHANGHAI,CHINA
Brand Name VANSHUI
Certification CE,FCC
Model Number GL-AC04
Minimum Order Quantity 1pcs
Price Negotiation
Packaging Details Unit Pacakge:15.6*7.6*6.6cm,G.W.:0.615kg Carton Package:47*30*18.2cm,G.W.12.5kg,20units/CTN
Delivery Time sample order within 3-4days.
Payment Terms T/T, Western Union,Paypal
Supply Ability 1000Pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
User Capacity 1000 Users (988 Common Users + 2 Panic Users +10 Visitor Users) PIN Length 4~6 Digits
Operating Voltage 12~28V AC/DC Proximity Card Reader 125KHz(ID Carfd) Or 13.56MHz(IC Card)
Wiring Connections Relay Output, Exit Button, Alarm, Door Contact, Wiegand Input/output Relay One (NO, NC, Common)
Adjustable Relay Output Time 0~99 Seconds (5 Seconds Default) Waterproof IP66
High Light

ultra high frequency rfid reader

,

long range uhf rfid reader

Leave a Message
Product Description
PRODUCT DESCRIPTION

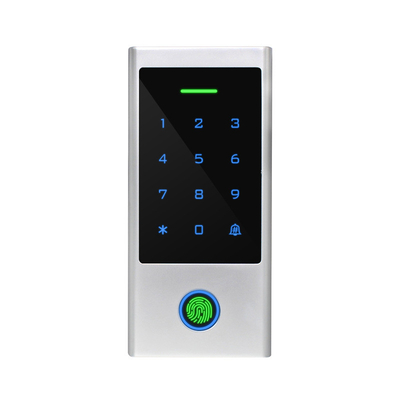

Fingerprint 125KHz Card Smart Door Access Control System with Touch Keypad Waterproof IP66 WIFI Tuya Access Control Read 0

Fingerprint 125KHz Card Smart Door Access Control System with Touch Keypad Waterproof IP66
WIFI Tuya Access Control Reader

FEATURES

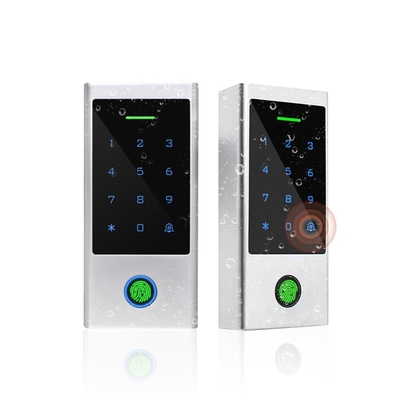

Fingerprint 125KHz Card Smart Door Access Control System with Touch Keypad Waterproof IP66 WIFI Tuya Access Control Read 1
Outdoor Touch Keypad & Reader
1>Compatible with all BT/Wi-Fi enable mobile phones (Android:4.3 above,iOS:7.0 above)
2>Integratedwith Tuya which supports 500 mobile users and 1000 local users
3>Add /Delete PIN /Card user and send eKeys
4>Available for both iOS and Android,supporting multiple languages
5>Multiple access modes:APP,Card,Password
6>Metal housing,anti-vandal,Waterproof
7>Support checking Opening Record
8>Support Gateway
9>Support Time Attendance

SPECIFICATION
Model
GL-AC04
User Capacity
Hardware User:1,000,APP User:500,
Common User:988 (100 Fingerprint Users +888 PIN/Card Users),
Visitor User:10,
Panic User:2
APP option
Tuya (WIFI or BT)
PIN Length
4~6 digits
Operating Voltage
12~28V AC/DC
Idle Current
≤ 60mA
Active Current
≤ 150mA
Proximity Card Reader
EM or Mifare
Radio Technology
125KHz or 13.56MHz
Read Range
2~6cm One
Wiring Connections
Relay output, exit button, alarm, door contact, Wiegand input/output
Relay
One (NO, NC, Common)
Adjustable Relay Output Time
0~99 Seconds (5 seconds default)
Lock Output Load
2 Amp Maximum
Wiegand Interface
EM card version: Wiegand 26~44 bits input & output
(Factory default: Wiegand 26bits)
Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output
(Factory default: Wiegand 34bits)
PIN Output
4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)
Environment
IP66
Operating Temperature
30°℃~60℃ (-22°F~140°F)
Operating Humidity
0%RH ~ 98%RH
Physical
Zinc-Alloy
Color
Sliver
Dimensions
L145 x W68 x H25 (mm)
Weight
Unit Weight:1KG;Shipping Weight:1.5KG

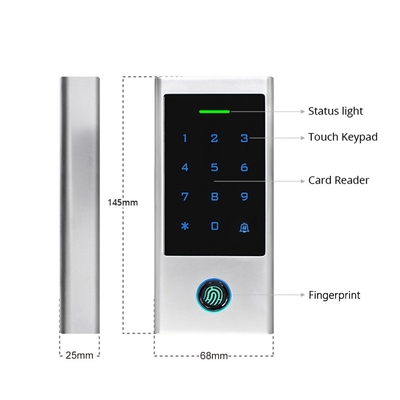

DIAGRAM
Fingerprint 125KHz Card Smart Door Access Control System with Touch Keypad Waterproof IP66 WIFI Tuya Access Control Read 2
DETAILS
Fingerprint 125KHz Card Smart Door Access Control System with Touch Keypad Waterproof IP66 WIFI Tuya Access Control Read 3
Fingerprint 125KHz Card Smart Door Access Control System with Touch Keypad Waterproof IP66 WIFI Tuya Access Control Read 4
Fingerprint 125KHz Card Smart Door Access Control System with Touch Keypad Waterproof IP66 WIFI Tuya Access Control Read 5
Fingerprint 125KHz Card Smart Door Access Control System with Touch Keypad Waterproof IP66 WIFI Tuya Access Control Read 6
Fingerprint 125KHz Card Smart Door Access Control System with Touch Keypad Waterproof IP66 WIFI Tuya Access Control Read 7
Fingerprint 125KHz Card Smart Door Access Control System with Touch Keypad Waterproof IP66 WIFI Tuya Access Control Read 8
PRODUCTS PACKAGE
Fingerprint 125KHz Card Smart Door Access Control System with Touch Keypad Waterproof IP66 WIFI Tuya Access Control Read 9
APP INTRODUCTION
Fingerprint 125KHz Card Smart Door Access Control System with Touch Keypad Waterproof IP66 WIFI Tuya Access Control Read 10
Fingerprint 125KHz Card Smart Door Access Control System with Touch Keypad Waterproof IP66 WIFI Tuya Access Control Read 11
Fingerprint 125KHz Card Smart Door Access Control System with Touch Keypad Waterproof IP66 WIFI Tuya Access Control Read 12
Fingerprint 125KHz Card Smart Door Access Control System with Touch Keypad Waterproof IP66 WIFI Tuya Access Control Read 13
Fingerprint 125KHz Card Smart Door Access Control System with Touch Keypad Waterproof IP66 WIFI Tuya Access Control Read 14

Fingerprint 125KHz Card Smart Door Access Control System with Touch Keypad Waterproof IP66 WIFI Tuya Access Control Read 15
