biometric facial recognition time attendance system and temperature face access control terminal FacePro1-TD

Place of Origin SHANGHAI
Brand Name VANSHUI
Certification FCC,CE
Model Number FacePro1-TD
Minimum Order Quantity 1PCS
Price Negotiation
Packaging Details 2KG/Box
Delivery Time 5-8working days
Payment Terms T/T, Western Union,Paypal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display 5-inch Touch Screen Face Capacity 6,000
Fingerprint Capacity 6,000(standard); 10,000(optional) Palm Capacity 3,000
Temperature Detector Yes Communication TCP/IP, Wiegand Input/output, RS485, Wi-Fi(optional)
Operation System Operation System Access Control Interface Electric Lock, Door Sensor, Exit Button, Alarm Output, Auxiliary Input
Leave a Message
Product Description

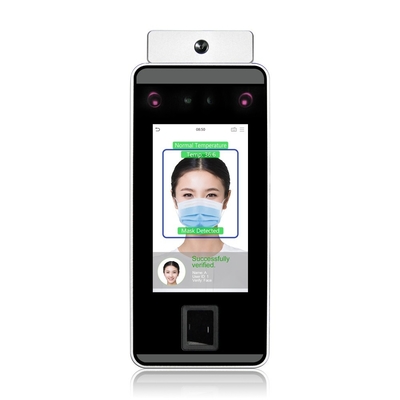

Biometric Facial Recognition Time Attendance System and Temperature Face Access Control Terminal



Product Description



biometric facial recognition time attendance system and temperature face access control terminal FacePro1-TD 0

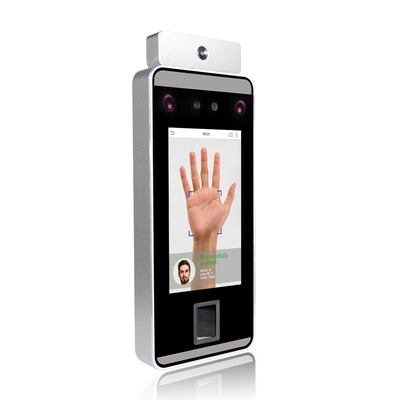

The Series adopts touchless recognition technology and new functions namely fever detection and masked individual identification which eliminates hygiene concerns effectively. It is also equipped with ultimate antispoofing algorithm for facial recognition against almost all types of fake photos and videos attack. Importantly, the 3-in-1 palm recognition (Palm Shape, Palm Print and Palm Vein) is performed in 0.35 sec per hand; the palm data acquired will be compared with a maximum of 3,000 palm templates.

The terminal with fever and mask detection will be a perfect choice to help reduce the spread of germs and prevent infections straightly at each access point of any premises and public areas such as hospitals, factories, schools, commercial buildings, stations during the outbreak of infectious and contagious diseases with its fast and accurate
body temperature measurement and masked individual identification funtions during facial and palm verification.



Basic Features

Visible Light Facial Recognition

Touchless for Better hygiene biometric authentication, temperature detection and masked individual identification

Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack

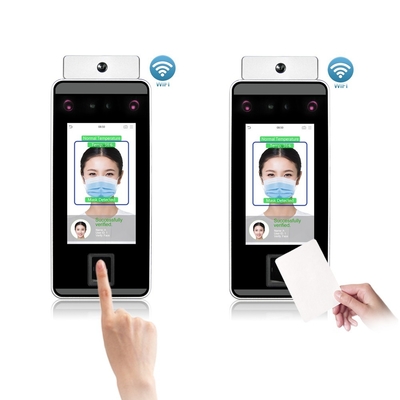

Multiple verification methods: Face/Palm/Fingerprint/Card/Password

Supplement lighting with adjustable brightness

Professional web based management software

Body Temperature detection with distance 30-50cm (1-1.64ft)

Measurement range 34℃ to 45℃ and Accuracy ±0.3

biometric facial recognition time attendance system and temperature face access control terminal FacePro1-TD 1



Specification

Model FacePro5-TD
Display 5-inch Touch Screen
Face Capacity 6,000(standard); 10,000(optional)
Fingerprint Capacity 6,000
Palm Capacity 3,000
Transactions 200,000 logs
Communication TCP/IP, Wi-Fi(Optional), Wiegand input/output, RS485
Standard Function ADMS, T9 Input, DST, Schedule Bell, Camera, 9 Digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verify Mode
Hardware

900MHz Dual Core CPU, Memory 512MB RAM/8G ROM;

2MP WDR Low Light Camera, Adjustable Light Brightness LED

Operation System Linux
Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input
Optional Function Wi-Fi
Support Mask Verification Yes
Biometrics Algorithms ZKFace V5.8 & ZKFinger V10.0
Face Recognition Speed <=1s
Power Supply 12V/3A
Operating Humidity 10%-90%
Operating Temperature -10degree to 45degree
Dimensions 91.93X220.93X22.5mm



Connection Diagram

biometric facial recognition time attendance system and temperature face access control terminal FacePro1-TD 2





biometric facial recognition time attendance system and temperature face access control terminal FacePro1-TD 3



biometric facial recognition time attendance system and temperature face access control terminal FacePro1-TD 4
