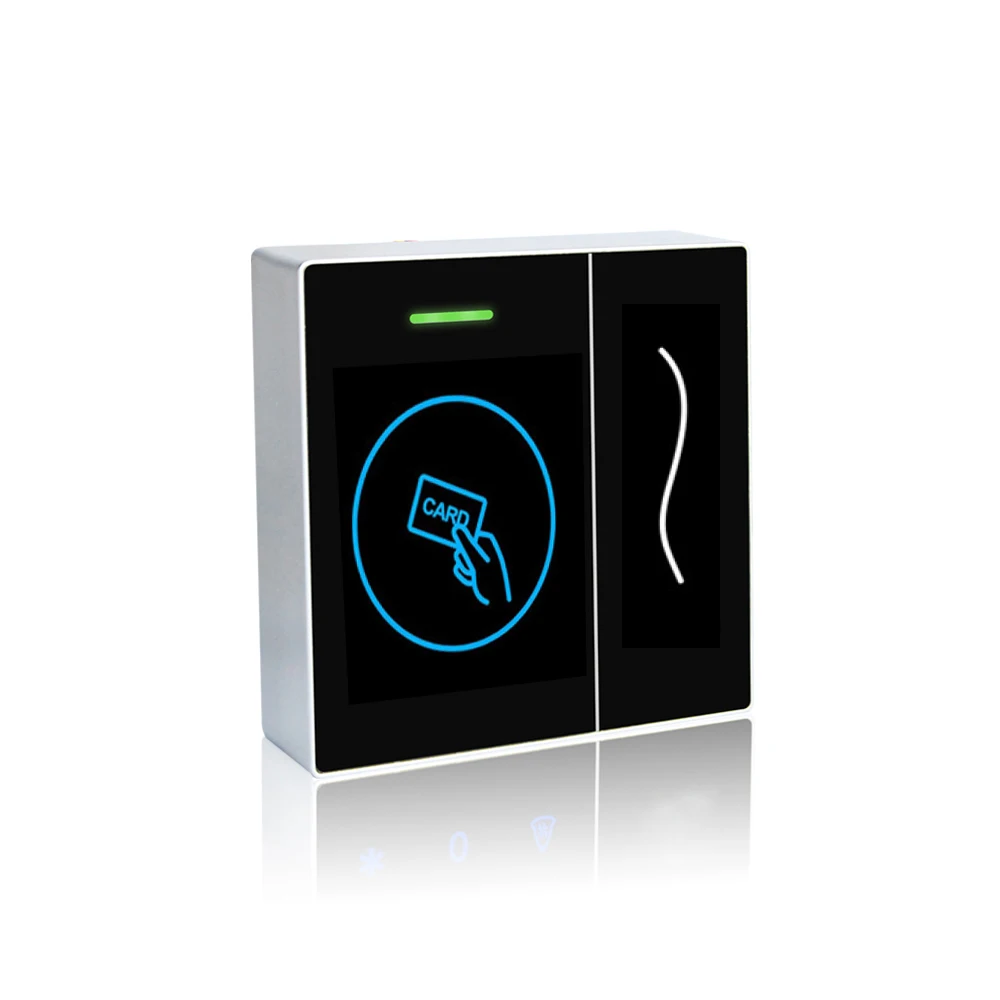

Waterproof IP65 RFID Card Access Control Reader with Wiegand Signal

Place of Origin	SHANGHAI,CHINA
Brand Name	VANSHUI
Certification	CE,FCC
Model Number	S02
Minimum Order Quantity	1pcs
Price	USD13-USD16
Packaging Details	Dimension(WHL): 312619cm, Volume weight: 2.5kg
Delivery Time	sample order within 3-4days.
Payment Terms	T/T, Western Union,Paypal
Supply Ability	1000Pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Type	ID Card Reader, IC Card Reader	Waterproof Level	IP65
Special Features	Access Control System	Network	Standalone
Application	Indoor	Verification Mode Card	125Khz ID Card Or 13.56Mhz IC Card
Card Reading Distance	3-9cm	Capacity	2,000Cards
Opening Hours	0-99 Seconds Adjustable, (factory Default Is 5 Seconds)	Ambient Temperature	-35℃- 60℃
Operating Voltage	DC 12V
Highlight	stand alone proximity card reader , wireless proximity card reader

Leave a Message

Product Description

Waterproof IP65 RFID Card Access Control Reader with Wiegand Signal

Products Description

Features

BASIC FEATYRES

1/ Standalone access control terminal, interface for door lock, exit button

2/ Can be used as slave reader, connect with third party access controller through WG26/34

3/ Can work as master and connect with wiegand slave reader

4/ It supports 125Khz ID card or 13.56Mhz IC card

5/ Default is ID card, optional IC card, 2000 cards capacity.

6/ Can set management card, to add or delete users cards

7/ Easy to delete the card if the card is lost, to enhance security level

8/ User data can be imported into another machine by Wiegand connection

Specification & Additional Models

Specification

Model	S02
Verification Mode	125Khz ID Card or 13.56Mhz IC Card
Card Reading Distance	3-9cm
Capacity	2,000cards
Electric Lock Output	≦2A
Alarm Output	≦1A
Opening Hours	0-99 seconds adjustable, (factory default is 5 seconds)
Ambient Temperature	-35℃- 60℃
Operating Voltage	DC 12V
Stand-by Current	≦30mA
Waterproof Level	IP65 (Optional)
Dimensions	868622mm
