PIN Code and RFID Card Access Control Reader Metal Cover with IP68 Waterproof and Anti-vandal Features
| Place of Origin | SHANGHAI,CHINA |
|---|---|
| Brand Name | VANSHUI |
| Certification | CE,FCC |
| Model Number | U10 |
| Minimum Order Quantity | 1pcs |
| Price | USD22-USD27 |
| Packaging Details | Package Weight:1kg Package Size:30cm x 20cm x 8cm |
| Delivery Time | sample order within 3-4days. |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 10000Pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Ingress Protection Grade | IP67 | Keypad | White Backlit, Numeric Keys 0-9, Function Keys *, #,Bell |
|---|---|---|---|
| Access Control Interface | Electric Lock, Exit Button, Alarm, Doorbell, Door Sensor | Wiegand Format | Wiegand26/34 Input & Output |
| Reading Distance | 3-6CM | Operate Temperature | -35℃-60℃ |
| Built-in Card Reader | Standard ID Card, Optional IC Card | Verification Mode | Card, PIN, Card+PIN, WiFi(optional) |
| Highlight | card reader access control systems,access control rfid reader |
||
Product Description

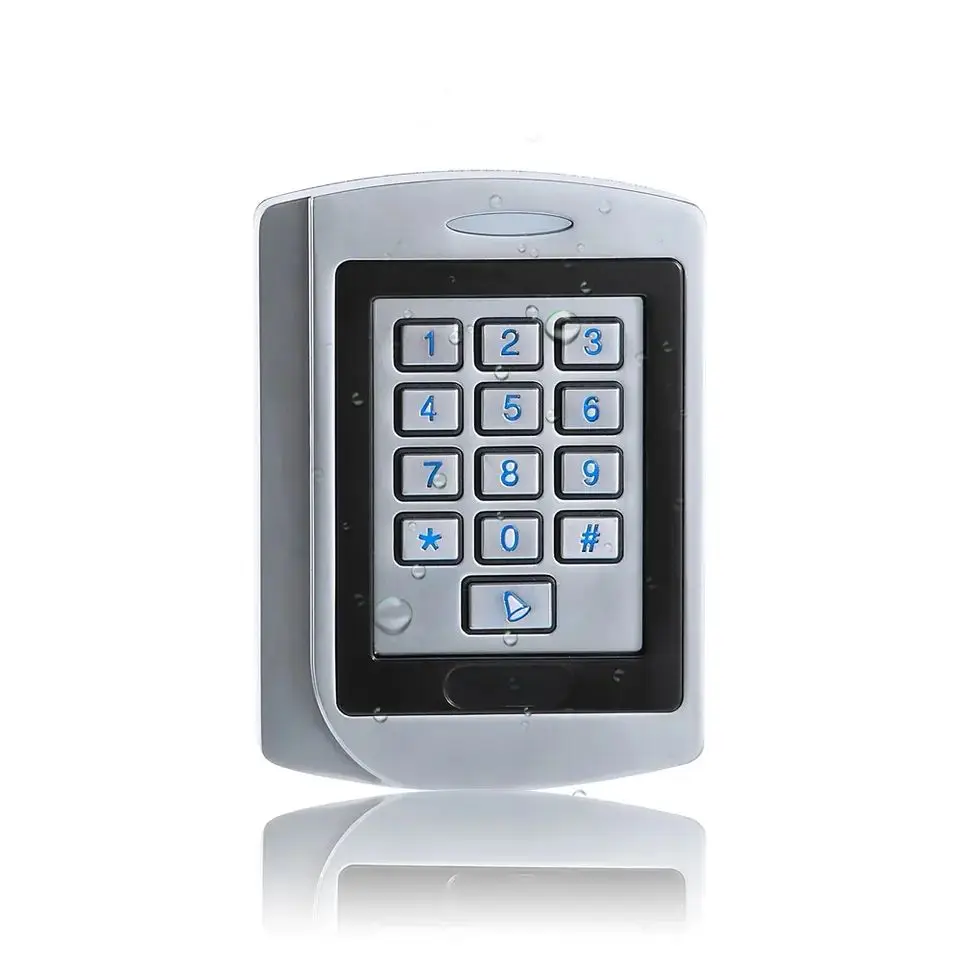

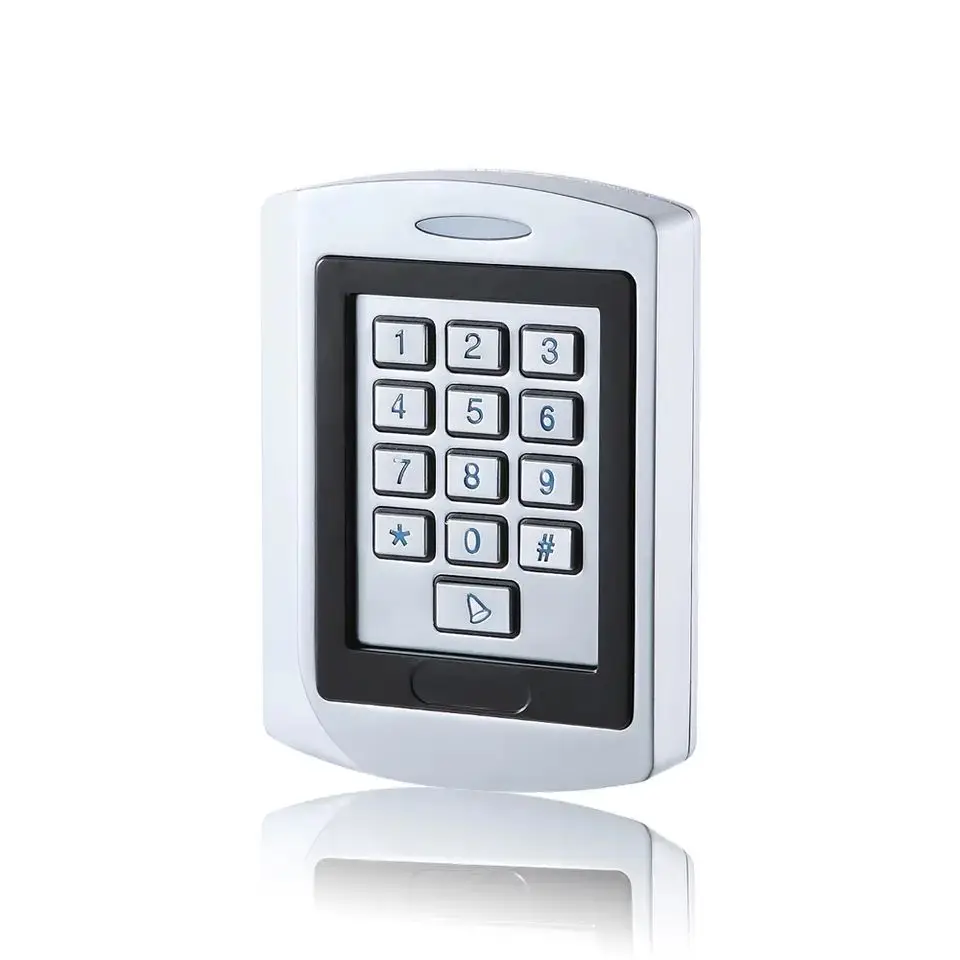

PIN Code and RFID Card Access Control Reader Metal Cover with IP68 Waterproof and Anti-vandal Features
PRODUCT DESCRIPTION
Model U10: Anti-Vandal Waterproof IP67 PIN Code+RFID Card Access Control Reader (Optional: WIFI App)
FEATURES
1/ 2000 uses, supports Card, PIN, Card + PIN,WiFi APP(optional) .

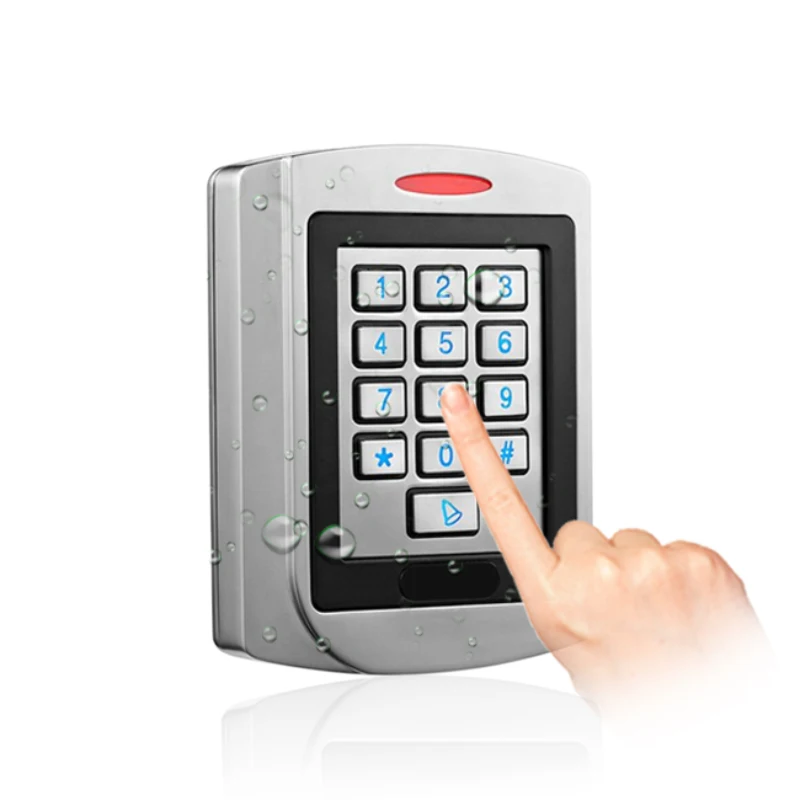

2/ Anti-vandal, Waterproof & Backlight Keypad.

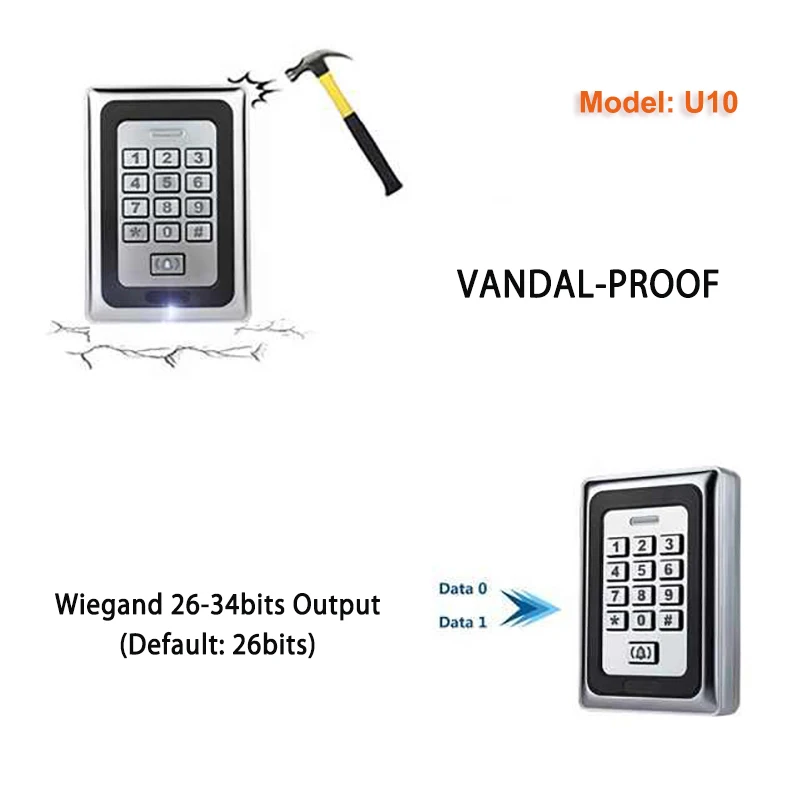

3/ Wiegand 26/34 input & output.
4/ Mounts easily to interior and exterior walls.
5/ One programmable relay output, NO, NC, COM.
6/ Adjustable door output time, Alarm time, Door open time.
7/ Block enrollment, can enroll maximum 2,000 consecutive card within 2 minutes.
8/ Very low power consumption (<60mA).
9/ Built in light dependent resistor (LDR) for anti tamper.

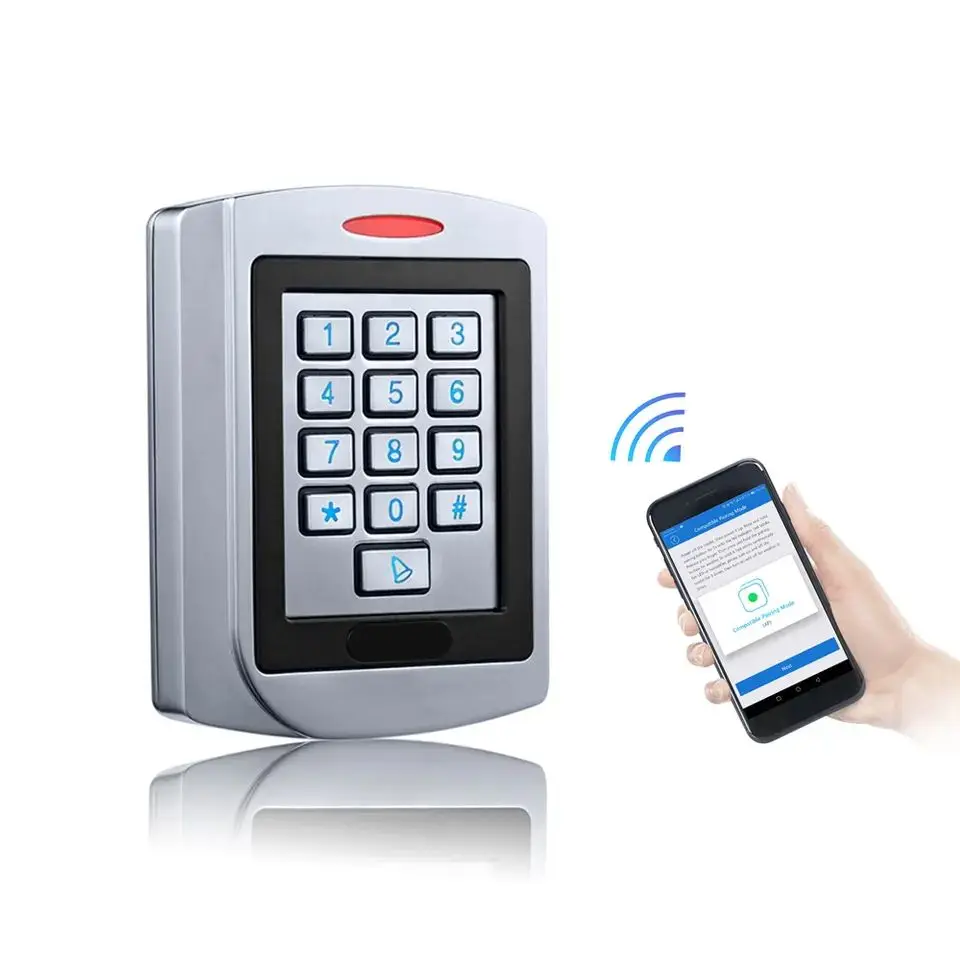

10/ WiFi function is optional.
2/ Anti-vandal, Waterproof & Backlight Keypad.
3/ Wiegand 26/34 input & output.
4/ Mounts easily to interior and exterior walls.
5/ One programmable relay output, NO, NC, COM.
6/ Adjustable door output time, Alarm time, Door open time.
7/ Block enrollment, can enroll maximum 2,000 consecutive card within 2 minutes.
8/ Very low power consumption (<60mA).
9/ Built in light dependent resistor (LDR) for anti tamper.
10/ WiFi function is optional.
SPECIFICATION
DIAGRAM
DETAILS
