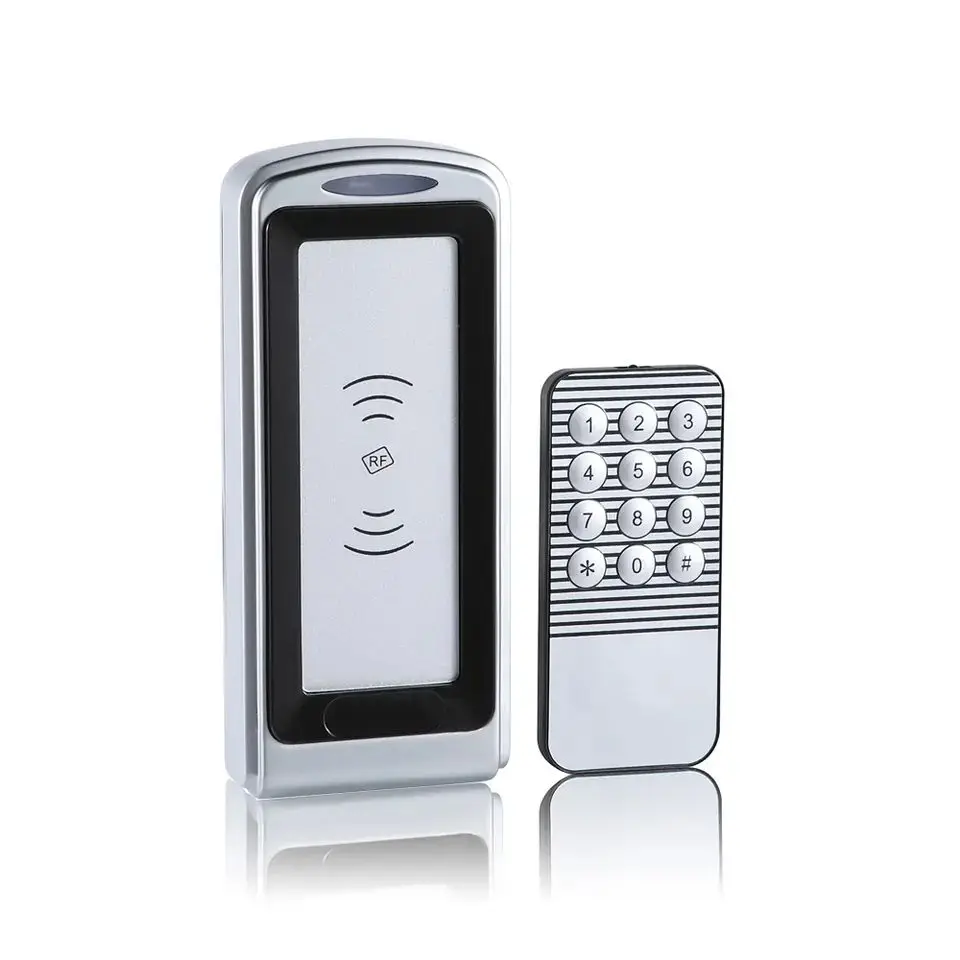

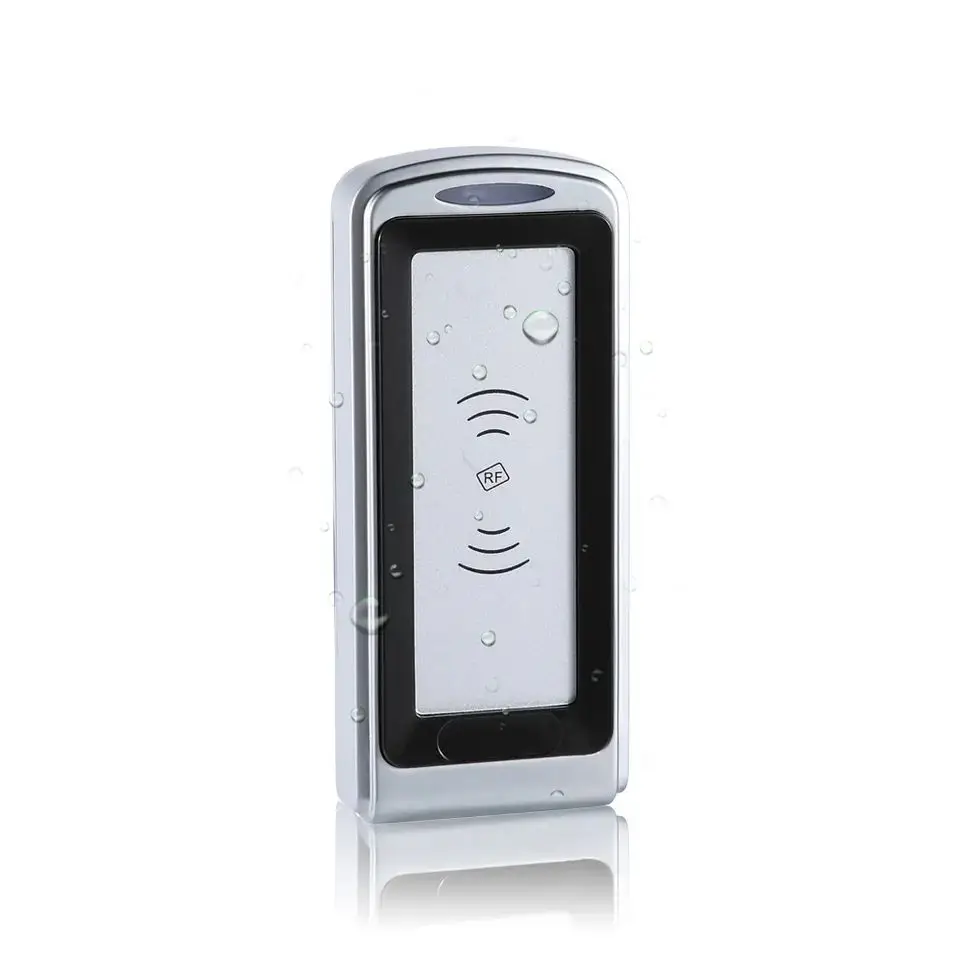

Name: Waterproof IP68 RFID Access Control Card Reader Remote Control with WIFI APP
Brand: VANSHUI
SKU: U2
Price: 20 USD
Availability: InStock
Rating: 4.8 (191 reviews)

Home > products > Access Control Reader >

Waterproof IP68 RFID Access Control Card Reader Remote Control with WIFI APP

card reader access control systems

access control rfid reader

Place of Origin:

SHANGHAI,CHINA

Brand Name:

VANSHUI

Certification:

CE,FCC

Model Number:

Request A Quote

Waterproof IP68 RFID Access Control Card Reader Remote Control with WIFI APP

Product Details

Speaker:

Programmable Audio Buzzer For Audible Confirmation Or Silent Mode

Capacity:

Card Capacity: 100 User Cards, 5 Master Cards

Identifications:

<=20ms

Power Supply:

110/220VAC-12VDC 3A (PS-3A Is Optional Item)

Access Mode:

Card Only

Operation Temperature:

-20-70 Degree

Operation Humidity:

20%-80%

Standalone:

No Network,simple 1 Door Controller Built-in Relay (Com, NO, NC)

Machine Size:

95(L)*45(W)*18(H)mm

KR201 Wiegand 26/34 RFID Card Access Control Reader 13.56Mhz Waterproof IP65

Get Best Price

KR202M13.56MHz Access Control Card Reader With Password and LED Indicator Waterproof IP65

Get Best Price

RFID Card Access control card reader and Password Keypad with Standard Output WG 26/34 KR202

Get Best Price

KR201 RFID Card Access control card reader with Wiegand 26/34 Waterproof IP65 125Khz

Get Best Price

86-21-54234509-815

janeji@vanshui.com

Contact Now

Product Description

Waterproof IP68 RFID Access Control Card Reader Remote Control with WIFI APP

PRODUCT DESCRIPTION

Model U2: Waterproof IP68 RFID Card Access Control Reader (Optional: WIFI App)

FEATURES

1/ 2000 users capacity, supports card, IR remote control or WIFI APP (optional)

2/ Anti-vandal, waterproof IP68 for outdoor application.

3/ With Wiegand 26/34 input & output signal.

4/ Mounts easily to interior and exterior walls.

5/ Support 125KHz ID card, can customize 13.56MHz card.

6/ Support 2pcs master cards to add and delete card users.

7/ Can add and delete card users by IR Remote Control (Optional)

8/ WiFi function can be customized.

9/ IR Remote Control is Optional.

SPECIFICATION

Model	U2
User Capacity	2000 users
LED Indicator	Green , Red
Keypad	No keypad
Verification Type	Card, wifi or IR Remote control (optional)
Built-in Card Reader	125KHz EM card, 13.56 MF card is optional
Reading Distance	3-6 cm
Access Control Interface	Electric lock, Exit Button and door sensor
Wiegand Format	Wiegand26/34 input & output
Power Supply	12VDC (power supply is optional)
Working Temperature	-35 degree-60 degree
Working Humidity	10%-90%
Dimension (WHD)	5813522MM
Weight	500g
Ingress Protection Rate	IP68
Optional function	WIFI, IR Remote control, IC card reader

Model	Description
U2/ID	Waterproof IP68 125KHz ID Card Access Control Reader
U2/IC	Waterproof IP68 13.56MHz IC Card Access Control Reader
U2/ID/APP	Waterproof IP68 125KHz ID Card Access Control Reader with WIFI APP
U2/IC/APP	Waterproof IP68 13.56KHz IC Card Access Control Reader with WIFI APP
