KR100 125Khz Access Control Card Reader Up to 5cm Read Range Waterproof IP65 Wiegand 26/34

Place of Origin	CHINA
Brand Name	VANSHUI
Certification	CE,FCC
Model Number	KR100E
Minimum Order Quantity	1
Price	USD8
Packaging Details	Package Weight:1kg Package Size:30cm x 20cm x 8cm
Delivery Time	sample order within 3-4days.
Payment Terms	T/T, Western Union, Paypal
Supply Ability	1000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Card	125KHz Proximity	Color	Black
Material	ABS+PC With Texture	LED Indicator	2 Color LED Indicators(Red And Green)
Output Format	26bit Wiegand (default)	Power / Current	DC 6-14V / Max.70mA

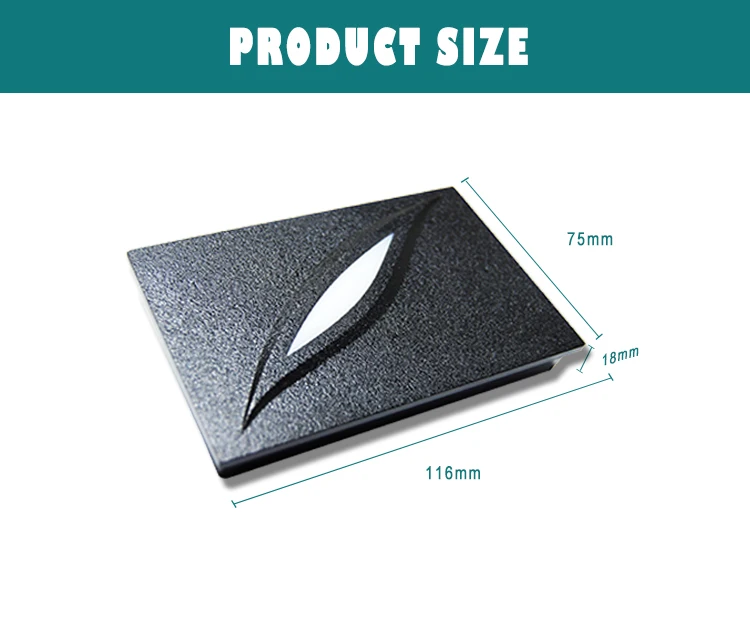

Dimension	1167518(W X H X T)mm	Waterproof Level	IP65
High Light	rfid card reader , rfid contactless card reader

Leave a Message

Product Description

Access Control Card Reader Up to 5CM Read Range Waterproof IP65 Wiegand 26

1. 125KHz Proximity Access Control Card Reader

2. Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)

3. 26/34bit Wiegand (default)

4. External LED Control

5. External Buzzer Control

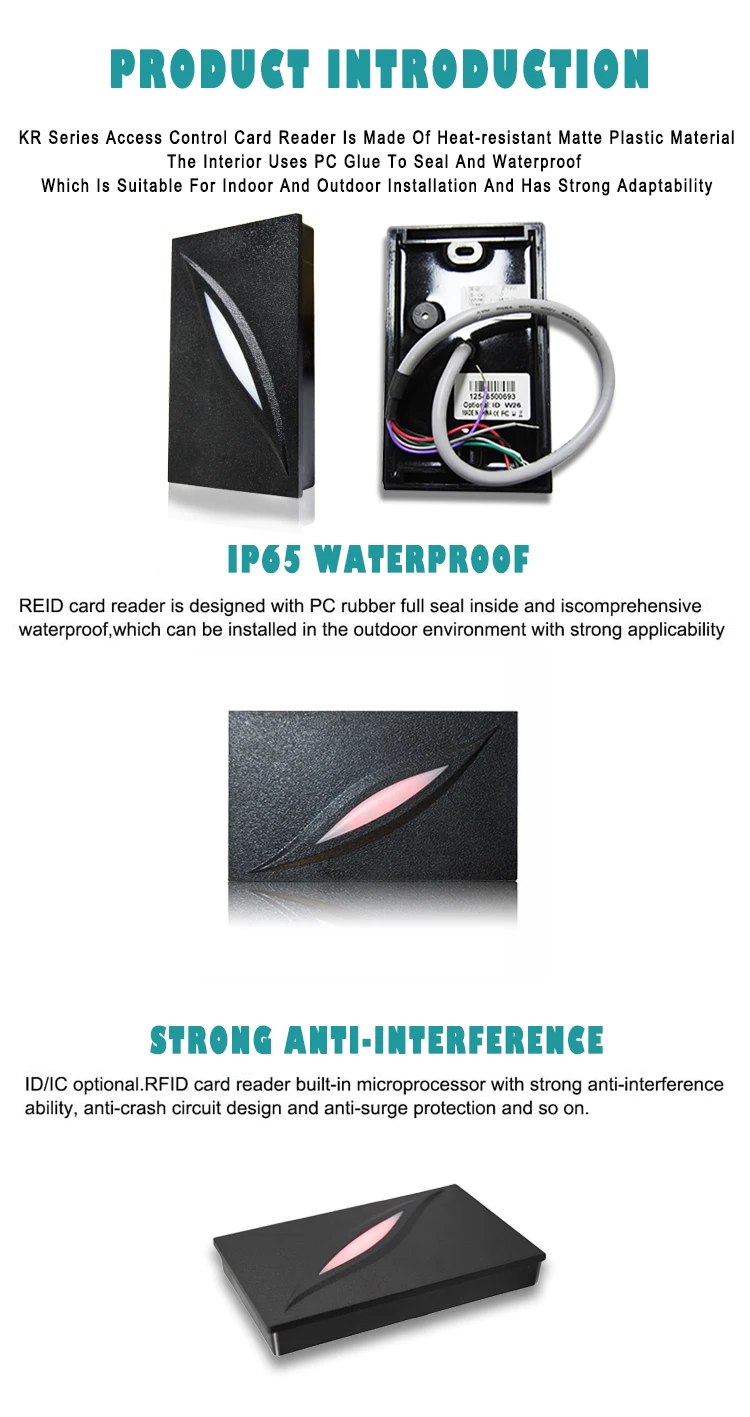

6. Indoor / Outdoor Operation

7.Solid Epoxy Potted

8. Waterproof IP65

9. Reverse Polarity Protection

Specification

Read Range: Up to 5CM

Color: Black

Power / Current: DC 6-14V / Max.70mA

Input Port: 2ea (External LED Control, External Buzzer Control)

Output Format: 26bit Wiegand (default)

Operating Humidity: 10% to 90% relative humidity non-condensing

Operating Temperature: -20° to +65°C

Index of Protection: IP65

Beeper: YES

LED Indicator: 2 Color LED Indicators(Red and Green)

Material: ABS+PC with texture

PRODUCT DESCRIPTION

Model KR100E or KR100M: Waterproof IP65 RFID Card Access Control Reader with Weigand 26/34 Signal

SPECIFICATION

Model	KR100E or KR100M
Frequency	125Khz ID card reader(KR100E) 13.56Mhz IC card reader(KR100M)
Waterproof Level	IP65
Verification Mode	Card
Reading Range	3-10cm
Wiegand Format	26 or 34 bit
Static Current	50-100mA
Power Supply	DC9-15V
Material	ABS plastic
Operating Temperature	-20℃~60℃
Operating Humidity	10%~90%
Dimension	1167518mm
LED indicator:	Red and Green
Weight:	120g
