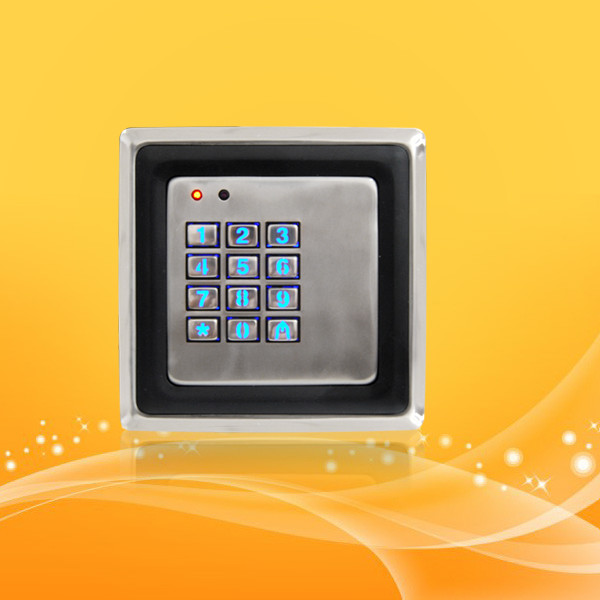

Smart Home Access Control Card Reader With Password , Metal Material Case

Smart Home Access Control Card Reader With Password , Metal Material Case

stand alone proximity card reader

wireless proximity card reader

Place of Origin:

SHANGHAI,CHINA

Brand Name:

VANSHUI

Certification:

CE,FCC

Model Number:

A808

Contact Us

Request A Quote
Product Details
Model:
A808
Waterproof Index:
IP67
Capacity:
Card:2000, Password:2000
Card Type:
125KHz (EM)
Speaker:
Beep
Reading Distance:
3-5cm
Functions Supported:
EM Lock, Electric Lock,Door Sensor, Exit Button,Bell, Alarm, Slave Reader
Product Description





Password and RFID Card Reader Waterproof IP67Metal Material Case



Products Description









This is a simple and standalone style of RFID card access control device with metal material making and 100% sealing (IP67), which can work under extremely environment from -30 degree to 60 degree and be vandal-proof. Small size and exquisite design make installing conveniently and simply. And the same time, it also supports password access, when you forget to take card, you will have one more choice to access.



Specification



Model A808
Waterproof Index IP67
Capacity Card:2000, Password:2000
Card Type EM
Speaker Beep
Reading Distance 3-5cm
Working Voltage DC12V-DC24V
Lock Current Output <=3A
Alarm Current Output <=1A
Alarm Time 1-99s(Setting)
Idle Current <=70 mA
Working Temperature -30 degree- 60 degree
Working Humidity 10%-90%
Door Relay Time 1-99s (setting)
Communication Wiegand 26
Dimension

A808:116*116*25mm

Weight

A808:0.45KG

Functions Supported

EM Lock, Electric Lock,

Door Sensor, Exit Button,

Bell, Alarm, Slave Reader

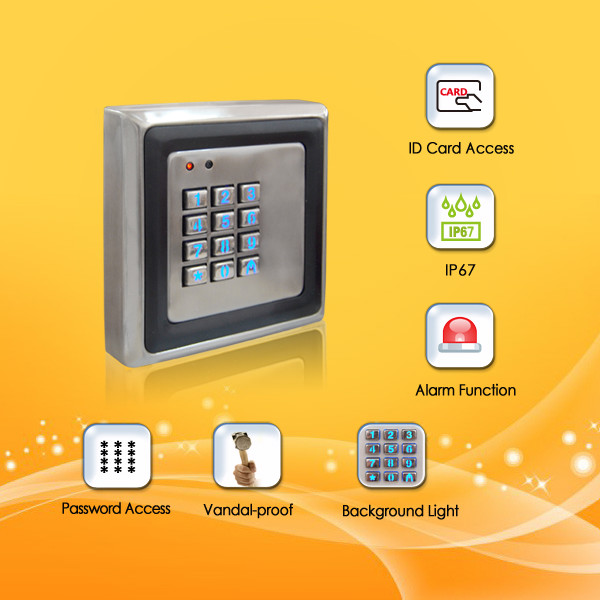

Features

Smart Standalone Keypad Reader Access Control System Products
1. Perfect Metal design, with back-light and fashion silver finish.
2. Waterproof design for outdoor use.
3. Strong standalone function device
4. Capacity:2000 user’s cards
5. Access ways : cards ,code,card +code.
6. Low power
7. users can reset private passwords.
8. Search fast less than 0.1s .
9. use keypad to delete lost cards for safety.
10. Short-circuit protect

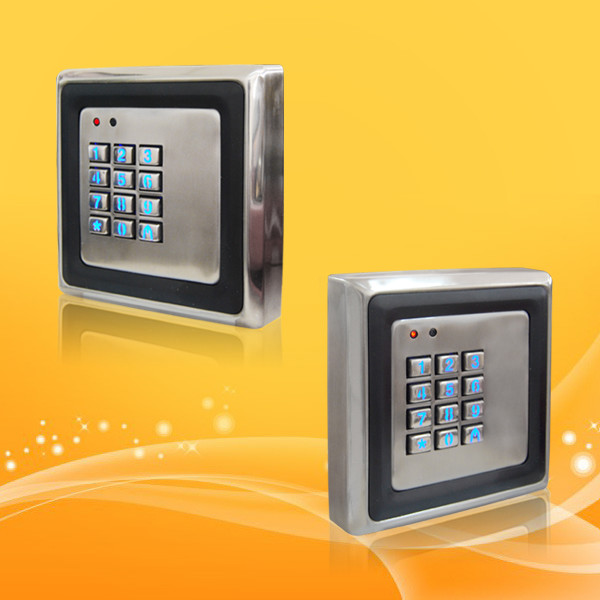

Smart Home Access Control Card Reader With Password , Metal Material Case 0







Working Application

Smart Home Access Control Card Reader With Password , Metal Material Case 1

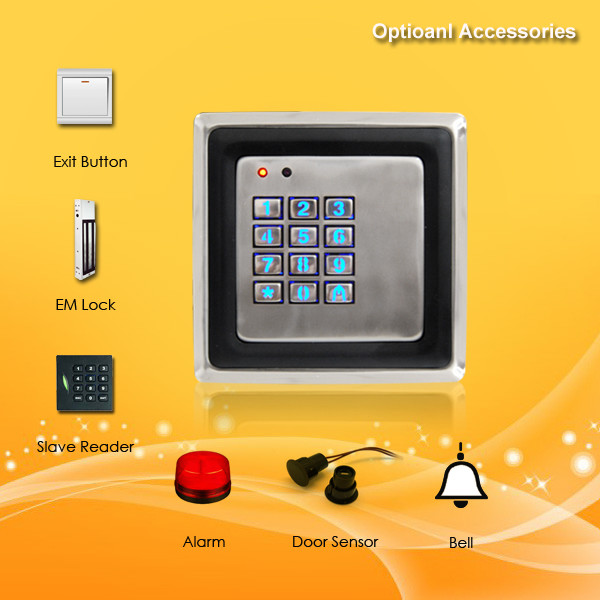

Optional Accessories



Smart Home Access Control Card Reader With Password , Metal Material Case 2
