Face Access Control System Weigand Signal with Video Intercom and QR code function WIFI TCP/IP

Face Access Control System Weigand Signal with Video Intercom and QR code function WIFI TCP/IP

wifi function face access control system

5" screen face access control system

wifi biometric attendance system face recognition

Place of Origin:

SHANGHAI

Brand Name:

VANSHUI

Certification:

FCC,CE

Model Number:

FacePro1

Contact Us

Request A Quote
Product Details
APP Control:

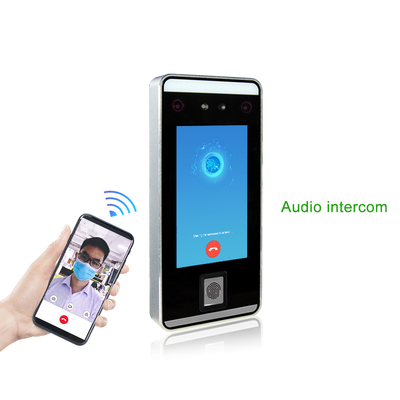

Video Intercom Function
Display:
5 Inch Touch Screen
Face Capacity:
6,000
Fingerprint Capacity:
6,000
Card Capacity:
10,000 Cards
Transactions:
200,000 Logs
Communication:
TCP/IP, Wi-Fi, Wiegand Input/output, RS485, RS232
Operation System:
Linux
Access Control Interface:
Electric Lock, Door Sensor, Exit Button, Alarm Output, Auxiliary Input
Power Supply:
12V/3A
Dimensions:
91.93X202.93X21.5mm
Product Description

Facial Recognition Access Control System and Fingerprint Time attendance with WiFi



Product Description



Recognition distance up to 2m long and extra wide angle recognition

The recognition distance has been greatly extended up to 2 meters long, which significantly improves maximum traffic rate. While most of algorithms only support 15-degree angle facial recognition, supports 30-degree angle facial recognition.

Face Access Control System Weigand Signal with Video Intercom and QR code function WIFI TCP/IP 0

Product Description

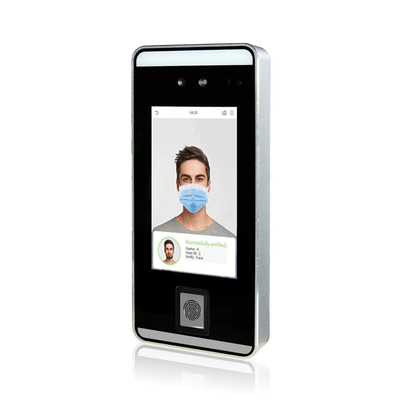

Enhanced Visible Light Facial Recognition

Better hygiene with touchless biometric authentication, masked individual identification increase FAR

Anti-spoofing algorithm against print attack(laser, color and B/W photos), videos attack and 3D mask attack

Communication mode: TCP/IP, RS232, RS485, Wiegand in/out and Wi-Fi

Built-in ID reader of 125Khz, Optional 13.56Mhz IC (MF) card

Multiple Verification: Face/Fingerprint/Card/Password

Supplement light with adjustable brightness

Professional web based management software

Recognition distance: 0.3-2 meters

Face Access Control System Weigand Signal with Video Intercom and QR code function WIFI TCP/IP 1





Specification

Model FacePro1
Display 5-inch Touch Screen
Face Capacity 6,000
Fingerprint Capacity 6,000
Card Capacity 10,000 ID Cards, (Optional: IC/MF card function)
Transactions 200,000 logs
Communication TCP/IP, Wi-Fi, Wiegand input/output, RS485, RS232
Standard Function ADMS, T9 Input, DST, Schedule Bell, Camera, 9 Digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verify Mode
Hardware

Dual Core CPU, Memory 512MB RAM/8G ROM

2MP WDR Low Light Camera, Adjustable Light Brightness LED

Operation System Linux
Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input
Optional Function IC/MF card 13.56MHz
Face Recognition Speed <=1s
Power Supply 12V/3A
Operating Humidity 10%-90%
Operating Temperature -10degree to 45degree
Dimensions 91.93X202.93X21.5MM



Connection Diagram



Face Access Control System Weigand Signal with Video Intercom and QR code function WIFI TCP/IP 2



Face Access Control System Weigand Signal with Video Intercom and QR code function WIFI TCP/IP 3
