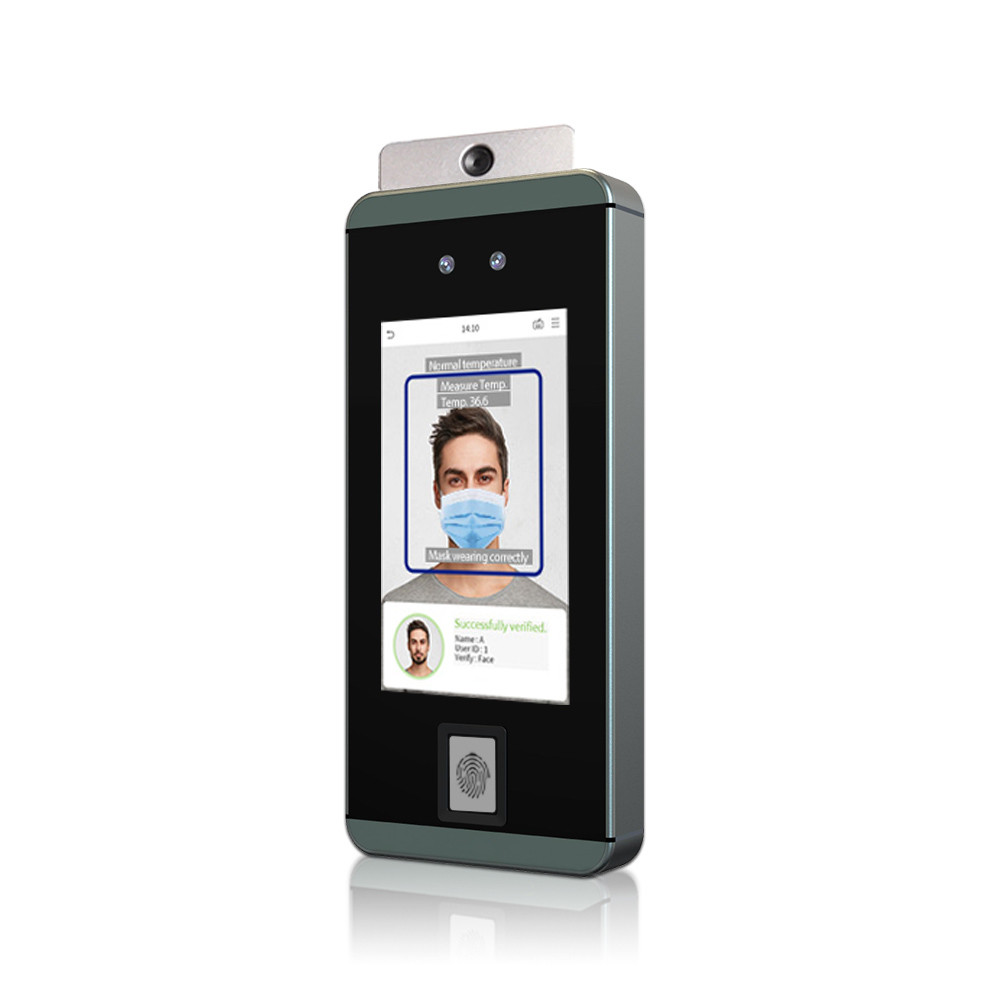

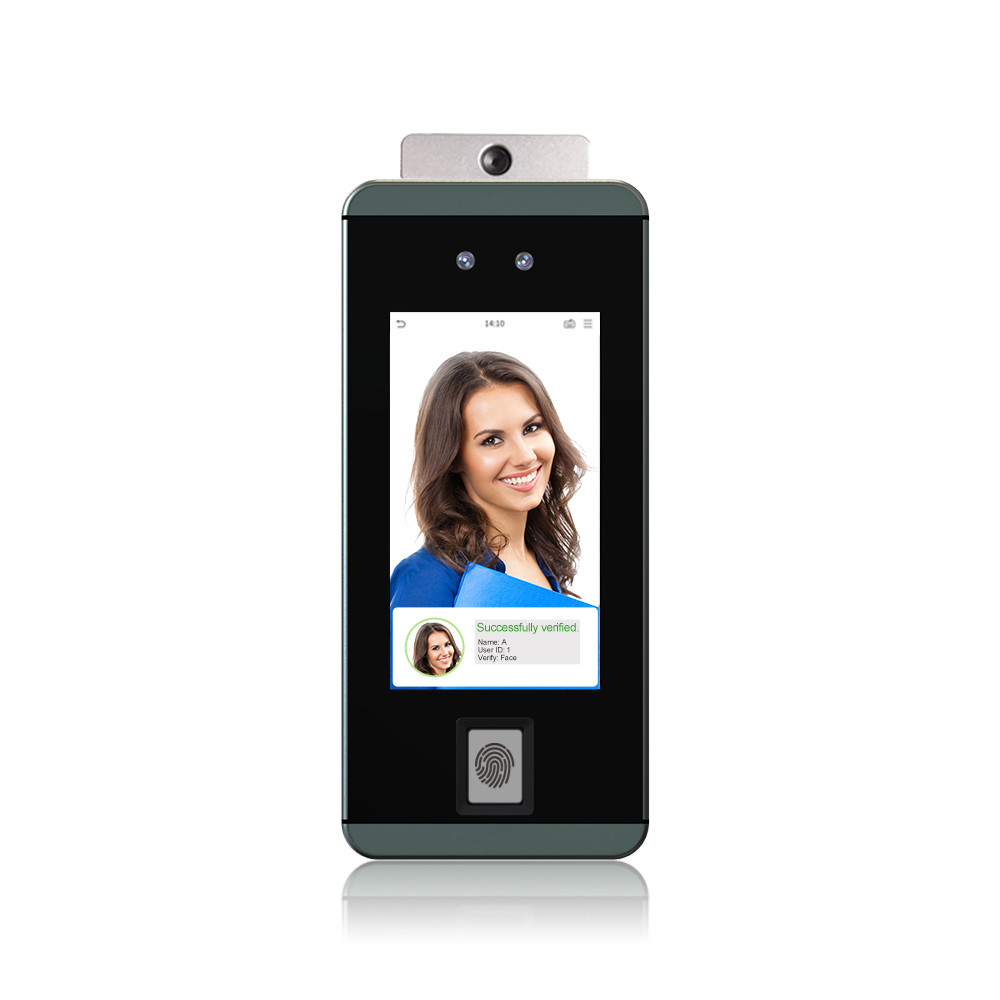

Touch Screen TCP/IP Face Biometric Attendance System Support Temperature Terminal

Touch Screen TCP/IP Face Biometric Attendance System Support Temperature Terminal

touchscreen face biometric attendance system

tcp/ip face biometric attendance system

facial biometric system support temperature terminal

Place of Origin:

SHANGHAI

Brand Name:

VANSHUI

Certification:

FCC,CE

Model Number:

FacePro1-TD

Contact Us

Request A Quote
Product Details
Display:
5-inch Touch Screen
Face Capacity:
6,000Faces
Fingerprint Capacity:
6,000Fps
Palm Capacity:
3,000Palms
WiFi Function:
Standard Communication
Communication:
TCP/IP, Wiegand Input/output, RS485
Operation System:
Linux
Temperature Detector:
YES
Product Description



Face Detection Access Control and Palm Reader Time Attendance System Support Temperature Terminal



Product Description





The Series adopts touchless recognition technology and new functions namely fever detection and masked individual identification which eliminates hygiene concerns effectively. It is also equipped with ultimate antispoofing algorithm for facial recognition against almost all types of fake photos and videos attack. Importantly, the 3-in-1 palm recognition (Palm Shape, Palm Print and Palm Vein) is performed in 0.35 sec per hand; the palm data acquired will be compared with a maximum of 3,000 palm templates.

The terminal with fever and mask detection will be a perfect choice to help reduce the spread of germs and prevent infections straightly at each access point of any premises and public areas such as hospitals, factories, schools, commercial buildings, stations during the outbreak of infectious and contagious diseases with its fast and accurate
body temperature measurement and masked individual identification funtions during facial and palm verification.

Touch Screen TCP/IP Face Biometric Attendance System Support Temperature Terminal 0

Basic Features



Visible Light Facial Recognition

Touchless for Better hygiene biometric authentication, temperature detection and masked individual identification

Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack

Multiple verification methods: Face/Palm/Fingerprint/Card/Password

Supplement lighting with adjustable brightness

Professional web based management software

Body Temperature detection with distance 30-50cm (1-1.64ft)

Measurement range 34 to 45 and Accuracy ±0.3



Touch Screen TCP/IP Face Biometric Attendance System Support Temperature Terminal 1



Specification

Model FacePro1-TD
Display 5-inch Touch Screen
Face Capacity 6,000
Fingerprint Capacity 6,000
Palm Capacity 3,000
Transactions 200,000 logs
Communication TCP/IP, Wiegand input/output, RS485
Standard Function ADMS, T9 Input, DST, Schedule Bell, Camera, 9 Digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verify Mode
Hardware

900MHz Dual Core CPU, Memory 512MB RAM/8G ROM;

2MP WDR Low Light Camera, Adjustable Light Brightness LED

Operation System Linux
Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input
Standard Function Wi-Fi
Support Mask Verification Yes
Biometrics Algorithms ZKFace V5.8 & ZKFinger V10.0
Face Recognition Speed <=1s
Power Supply 12V/3A
Operating Humidity 10%-90%
Operating Temperature -10degree to 45degree
Dimensions 91.93X220.93X22.5mm



Touch Screen TCP/IP Face Biometric Attendance System Support Temperature Terminal 2



Touch Screen TCP/IP Face Biometric Attendance System Support Temperature Terminal 3



BioAccess IVS

Touch Screen TCP/IP Face Biometric Attendance System Support Temperature Terminal 4
