Waterproof IP65 Stainless Steel Flush-Mounted SilkID Fingerprint Reader with RS485

Place of Origin	SHANGHAI, CHINA
Brand Name	VANSHUI
Certification	FCC,CE
Model Number	FR1500
Minimum Order Quantity	1
Price	Negotiate
Packaging Details	15X12X8 cm,Real weight: 0.35Kg Volume weight: 1.5Kg
Delivery Time	sample order within 3-4days.
Payment Terms	Western Union, T/T,Paypal
Supply Ability	1000pcs per week

Product Details

Special Feature	Waterproof Fingerprint And RFID Card Reader	CPU	324MHZ
Communication	RS485	Standard Function	ID Card Module
Power Supply	12VDC	Protection Grade	IP65
Sensor	Small-sized Sensor	Optional Function	IC Card Module
Highlight	hfp tws bluetooth earphone , 10m tws bluetooth earphone , hfp tws wireless earbuds

Leave a Message

Product Description

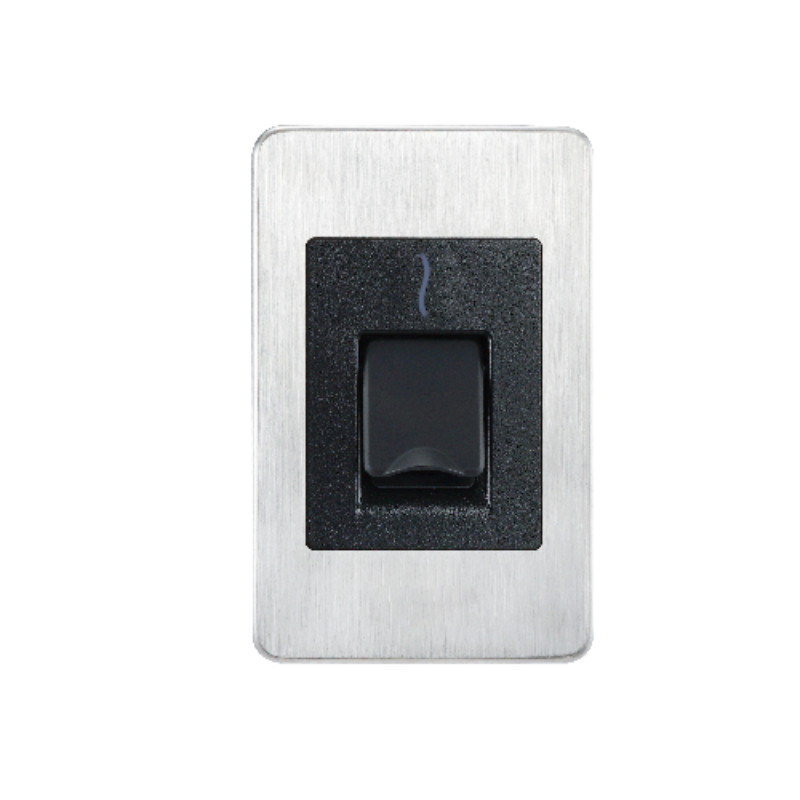

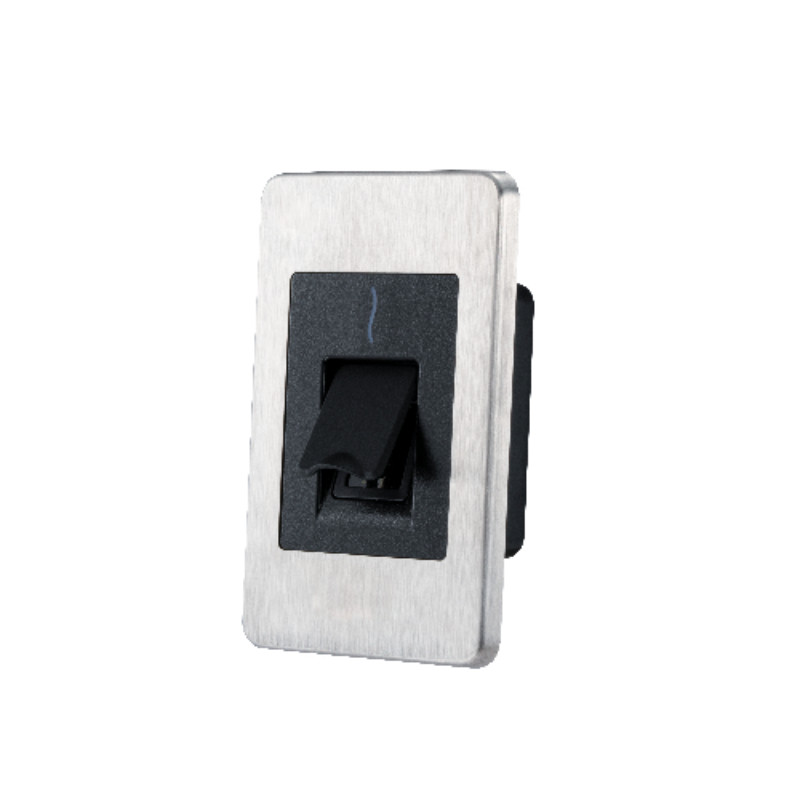

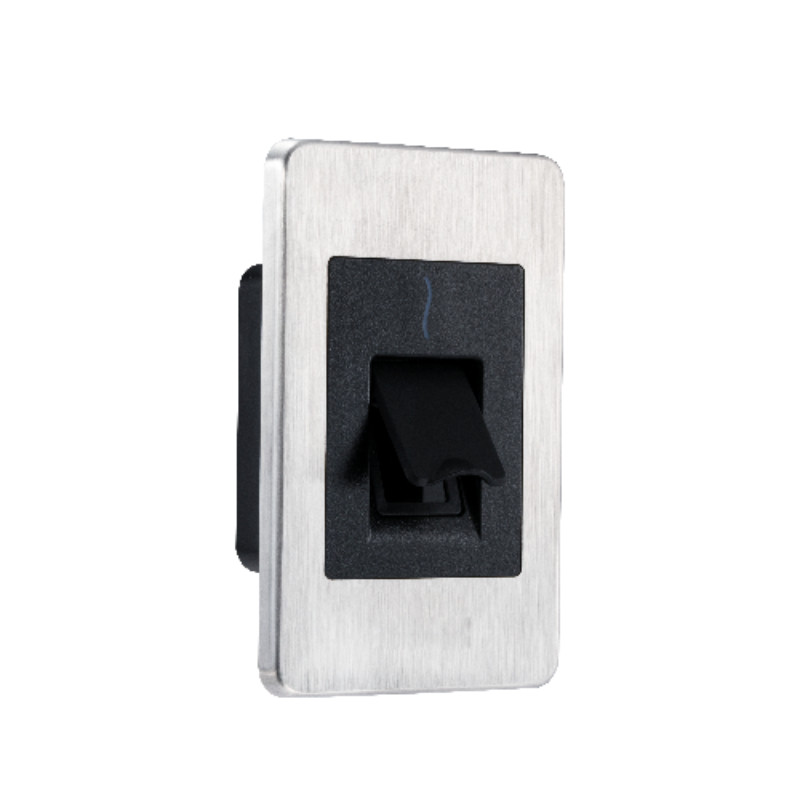

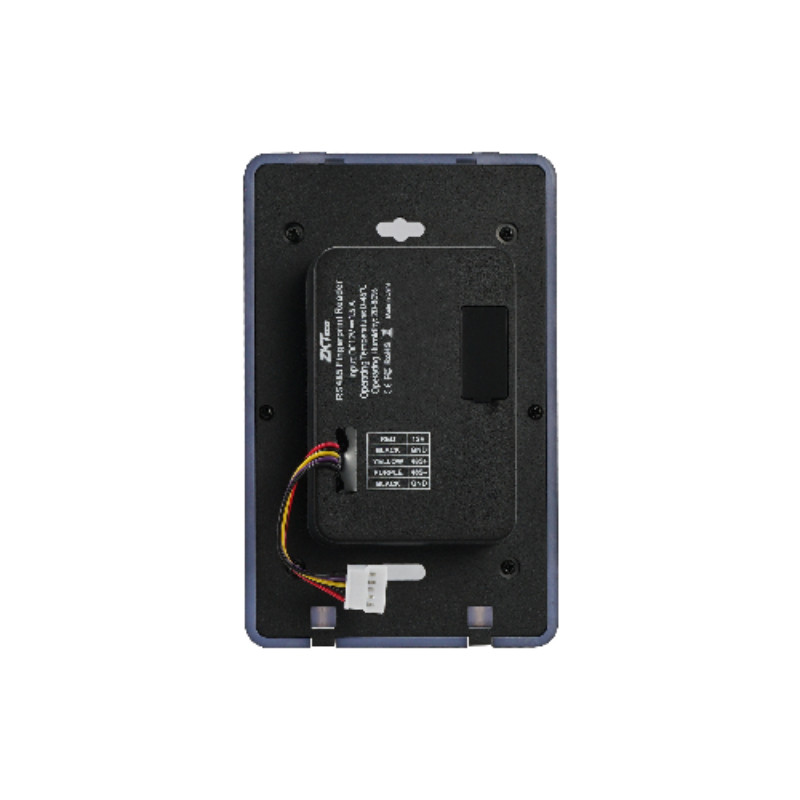

Waterproof IP65 Stainless Steel Flush-Mounted SilkID Fingerprint Reader with RS485

Products Description

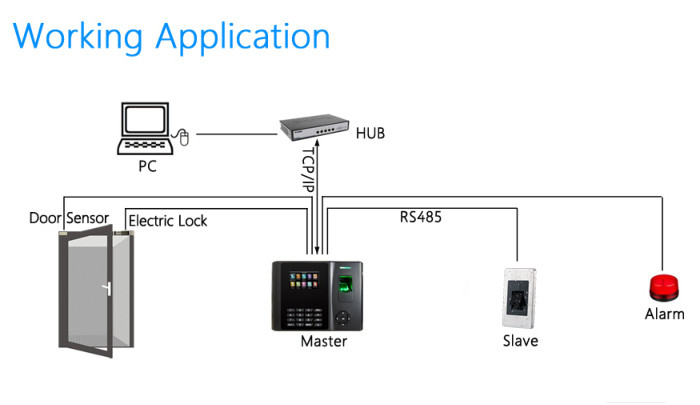

Fingerprint Readers with RS485 interface that work with Mater machine from Our Company device. All formation and transactions of the users will be stored in the master machine.

Built-in 125KHz ID card reader, MF card function is optional. As a value-added slave reader, provides the most secure and cost effective access control solution.

Features

Features

* Silk ID Fingerprint Sensor.

* Single gang Standard junction box installation.

* RS485 Communication Interface.

* Stainless Steel Front casing.

* Protection level of IP65; fully dust tight and resistant to water splashes from any direction.

* Flush-Mounted Design for neat installation.

Specification & Additional Models

Specification

Model	FR1500S/ID
General Info
Working Temperature	-10°C to 45°C
Working Humidity	20% to 95%
Dimensions (LWH)	121.3 × 77.3 × 38 (mm)
Algorithm	ZKFinger V10.0
Net Weight/Gross Weight	14.2g /24.4g
Power Supply
Voltage	DC 12V
Power Consumption under Stand-by Mode	12V*60mA=0.72W
Peak Current of Fingerprint Scanning	140mA
Hardware: CPU of 1.0GHz, ZKSilkID Sensor, Buzzer Prompt, Three-color Indicator
Compatibility:inBio/inBioPro Controllers, Standalone Fingerprint Devices
Standard Features:125KHz RFID Card
Optional Features:125KHz HID Prox Card, 13.56MHz IC Card(S50 / S70), 13.56MHz HID Iclass Card
Communication: RS485
