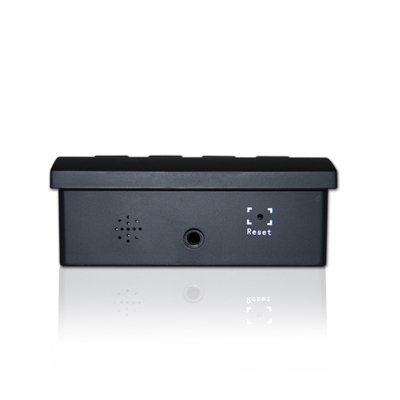

Name: Standalone Proximity ID Card Access Control and Color screen Time Attendance system
Brand: VANSHUI
SKU: SC405
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (182 reviews)

Home > products > Access Control Reader >

Standalone Proximity ID Card Access Control and Color screen Time Attendance system

hw32 wireless smart watch

ip67 wireless smart watch

hw32 smart watch ip67

Place of Origin:

SHANGHAI, CHINA

Brand Name:

VANSHUI

Certification:

FCC,CE

Model Number:

SC405

Request A Quote

Standalone Proximity ID Card Access Control and Color screen Time Attendance system

Product Details

Special Features:

RFID Card Access Control And Time Attendance Terminal

Type:

RFID Card+Password

LCD Display:

2.0-inch TFT LCD Color Screen

Speaker:

Voice Prompt(Language Can Be Selected)

Language:

More Than 40 Language Can Be Selected

Attendance Status:

Check In , Check Out, Break In, Break Out, Over Time In, Over Time Out

Communications:

TCTP/IP, RS232/485, USB Host, Wiegand In/out,SRB

Power Supply:

110/220VAC-12VDC 3A(PS-3A Is Optional Item)

Access Mode:

Card Only, PIN Only, Card+PIN

Customize Function:

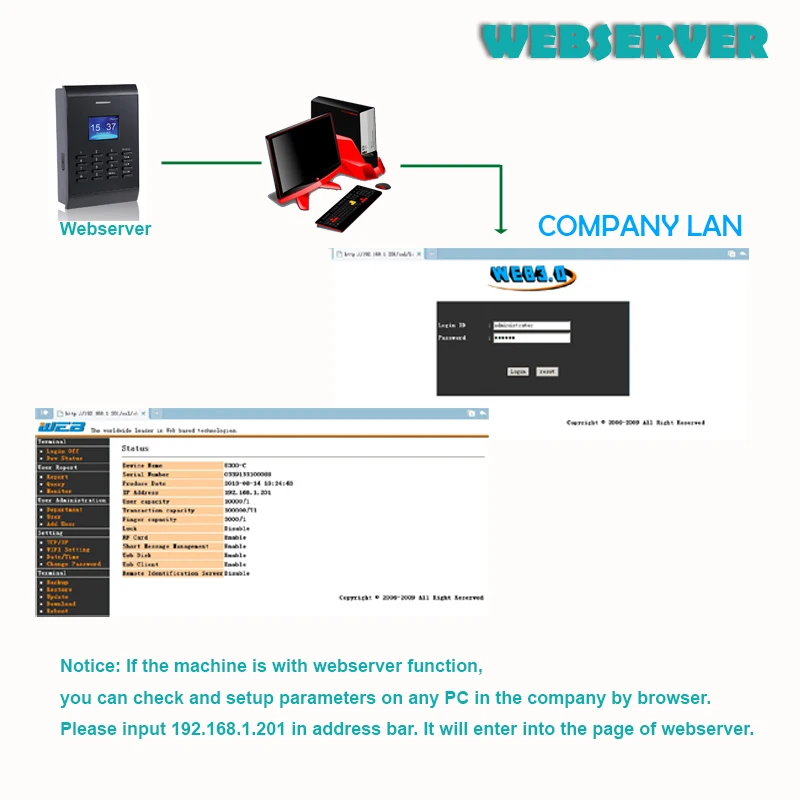

Websever; Anti-pass Back; IC Card Reader,Print Out

KR201 Wiegand 26/34 RFID Card Access Control Reader 13.56Mhz Waterproof IP65

Get Best Price

KR202M13.56MHz Access Control Card Reader With Password and LED Indicator Waterproof IP65

Get Best Price

RFID Card Access control card reader and Password Keypad with Standard Output WG 26/34 KR202

Get Best Price

KR201 RFID Card Access control card reader with Wiegand 26/34 Waterproof IP65 125Khz

Get Best Price

86-21-54234509-815

janeji@vanshui.com

Contact Now

Product Description

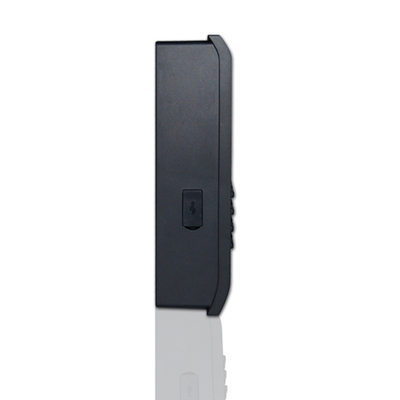

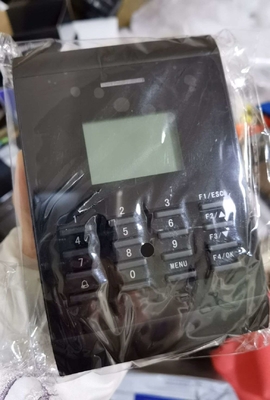

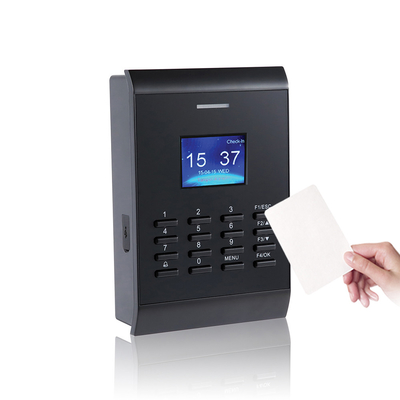

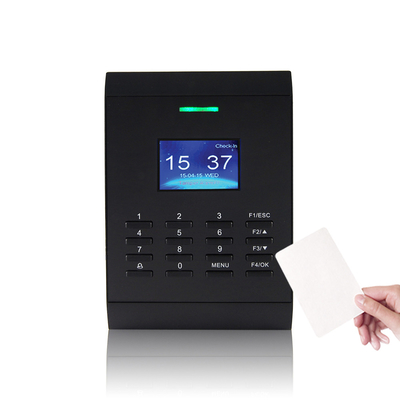

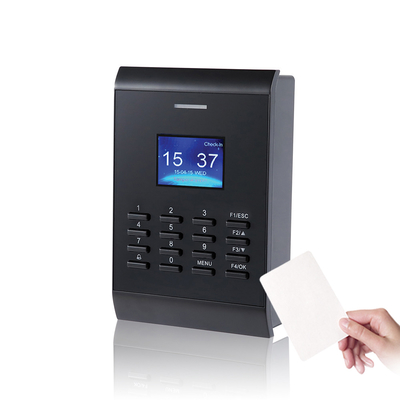

Standalone Proximity ID Card Access Control and Color screen Time Attendance system

Products Description

MODEL: SC405

RFID Card Access Control System with TCP/IP and USB Port. It is with anti-pass and wiegand in/out function.You also can do verfication by Password as well.There is 125KHz EM card moduel standard. And 13.56MHz IC card Module as optional.

Features

1/ 2.0-inch color display with graphical Ul for easy operation

2/ Standard access control features such as Time zone,Holiday,A&C Group,Unlock combination etc.

3/ Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch

4/ TCP/IP or RS485 communication for various networking environments

5/ Supports USB flash drive for offline data management

6/ Support EM 125 KHz or IC 13.56MHz proximity card or compatible card

7/ Up to 24 user-defined schedules that can be activated on a daily bell alert

Specification & Additional Models

Specification

Model Name	SC405/ID OR SC405/IC
CD Display	2.0-inch TFT LCD Color Screen
Speaker	Voice prompt(Language can be selected)
Language	More than 40 language can be selected
Capacity	Cards: 30,000 Logs:80,000
Verification	Verification speed(1:1)<=0.5s Identification speed(1:1)<=20ms
Attendance Status	Check in , Check out, break in, break out

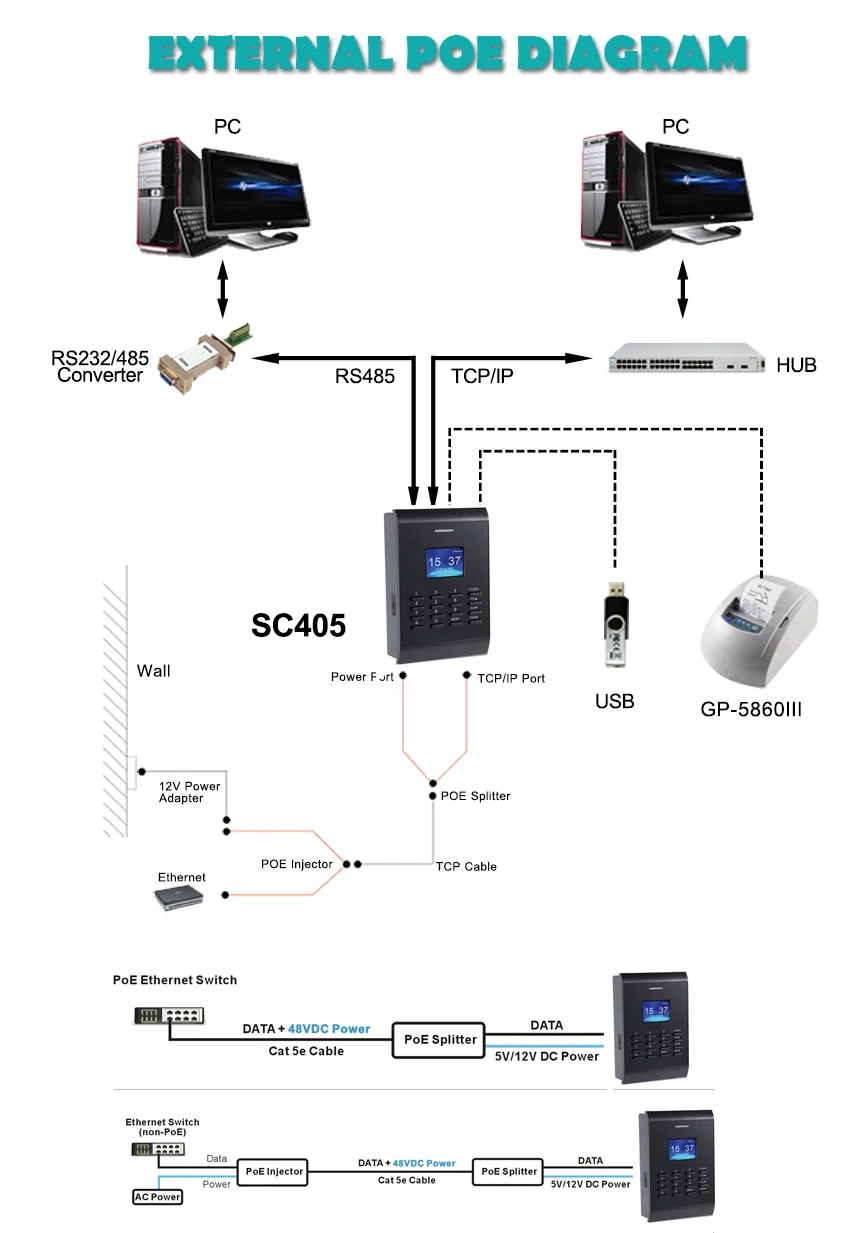

Communications	TCTP/IP, RS232/485, USB Host, Wiegand in/out,SRB
Access Mode	Card only, PIN only, Card+PIN
Function Support	Work code, SMS, 9 PIN user ID, Auto status
Environment	Operation temperature: 0-45 degree Operation humidity: 20%-80%

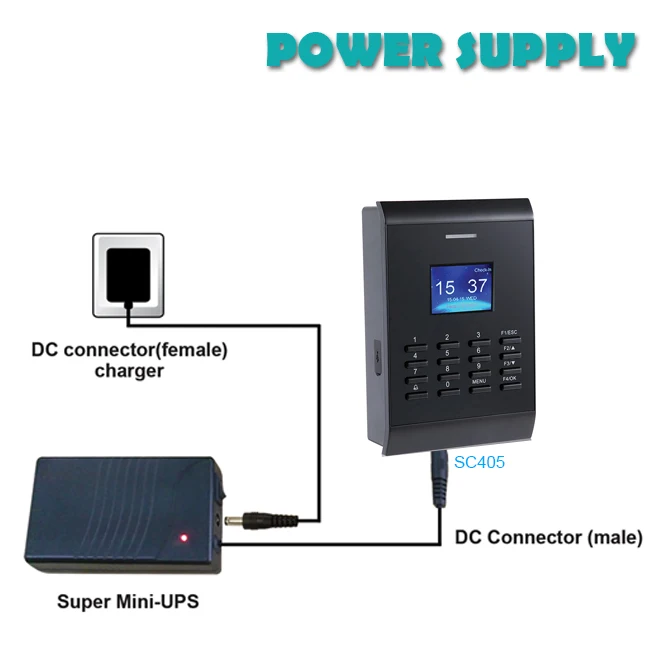

Power Supply	110/220VAC-12VDC 3A(PS-3A is optional item)

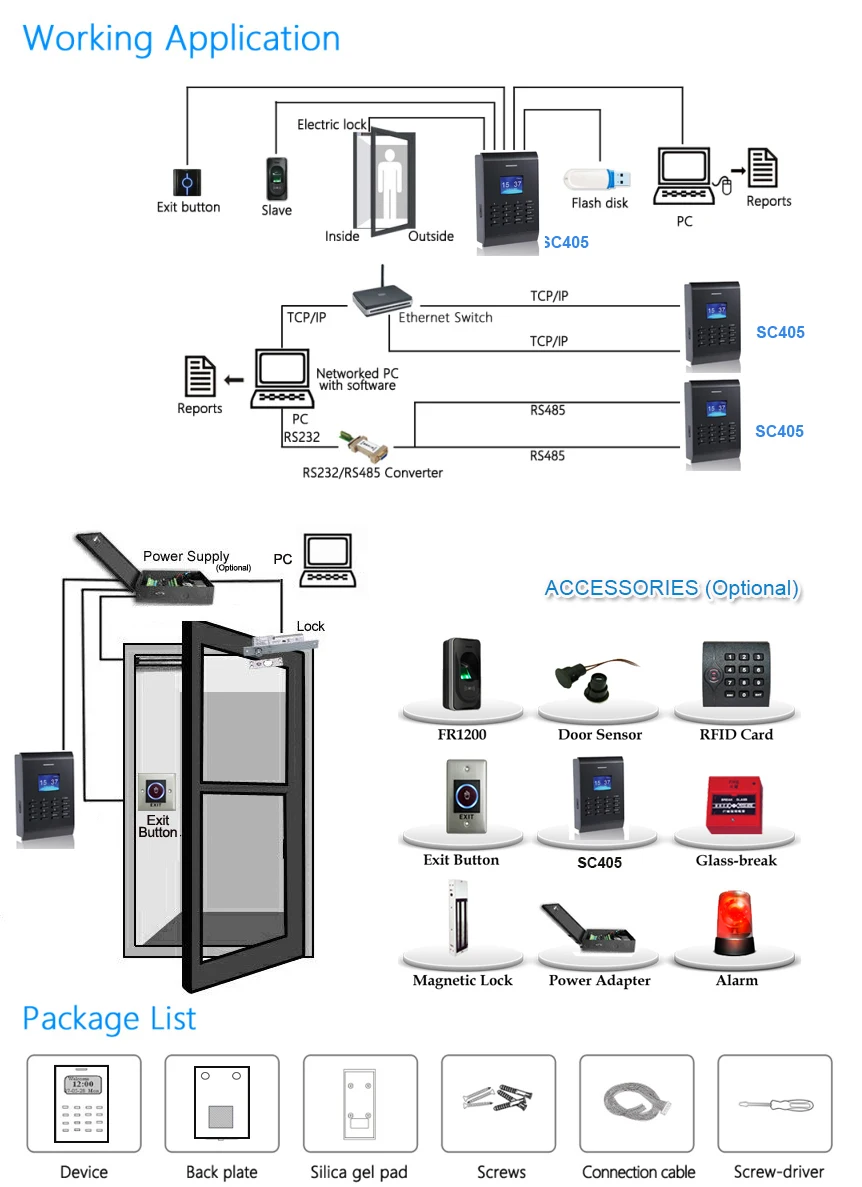

Access Control	50 times zones, 5 groups, 10 open door combination, supports multi-users enter, TTL for connecting to lock, door sensor, exit button, alarm

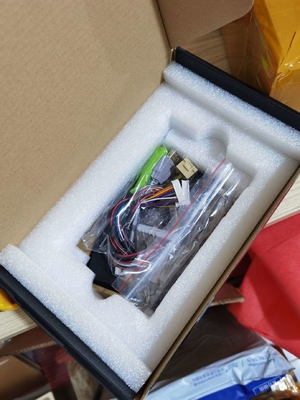

Package Info.	Machine size: 14.3(L)9.6(W)4.2(H)cm Unit packing:25159cm Carton packing:533345cm Real weight:0.75KG Volume Weight: 1.5KG

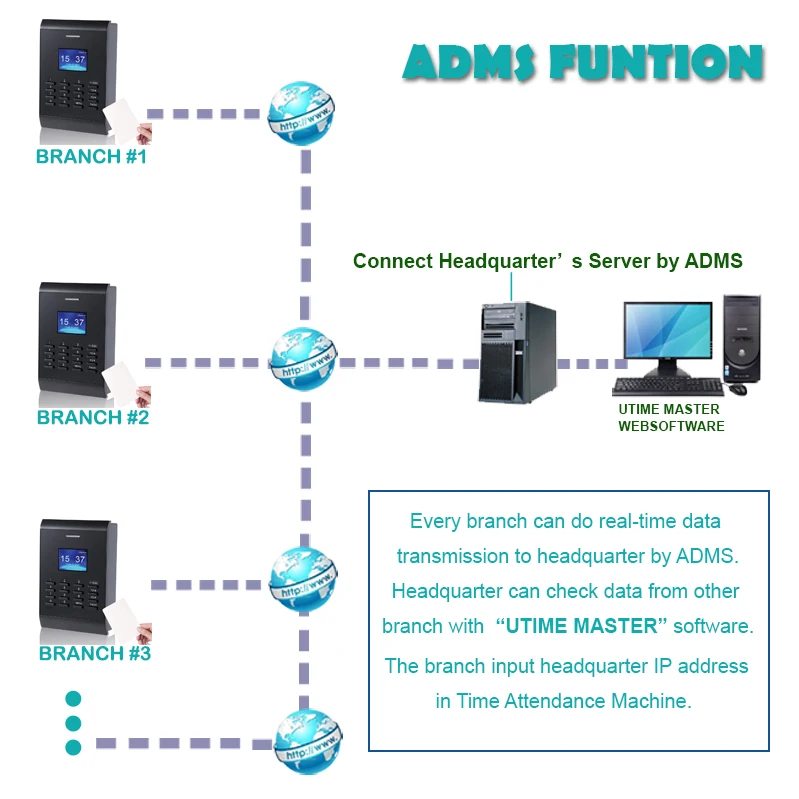

Customize Function	ADMS, IC Card module
