RFID Proximity Card Access Control Reader with Webserver and Anti-pass Back Function

Product Details

Features:

RFID Card Access Control System

Access Mode:

Card Only, PIN Only, Card+PIN

Card Capacity:

30,000 Cards

Log Capacity:

100,000logs

Attendance Status:

Check In , Check Out, Break In, Break Out, Overtime In, Overtime Out

Communications:

TCTP/IP, RS232/485, USB Host/Client, Wiegand In/out

Function Support:

Work Code, SMS, 9 PIN User ID, Auto Status

Power Supply:

110/220VAC-12VDC 3A(PS-3A Is Optional Item)

KR201 Wiegand 26/34 RFID Card Access Control Reader 13.56Mhz Waterproof IP65

Get Best Price

KR202M13.56MHz Access Control Card Reader With Password and LED Indicator Waterproof IP65

Get Best Price

RFID Card Access control card reader and Password Keypad with Standard Output WG 26/34 KR202

Get Best Price

KR201 RFID Card Access control card reader with Wiegand 26/34 Waterproof IP65 125Khz

Get Best Price

86-21-54234509-815

janeji@vanshui.com

Contact Now

Product Description

RFID Proximity Card Access Control Reader with Webserver and Anti-pass Back Function

Products Description

MODEL:SC105

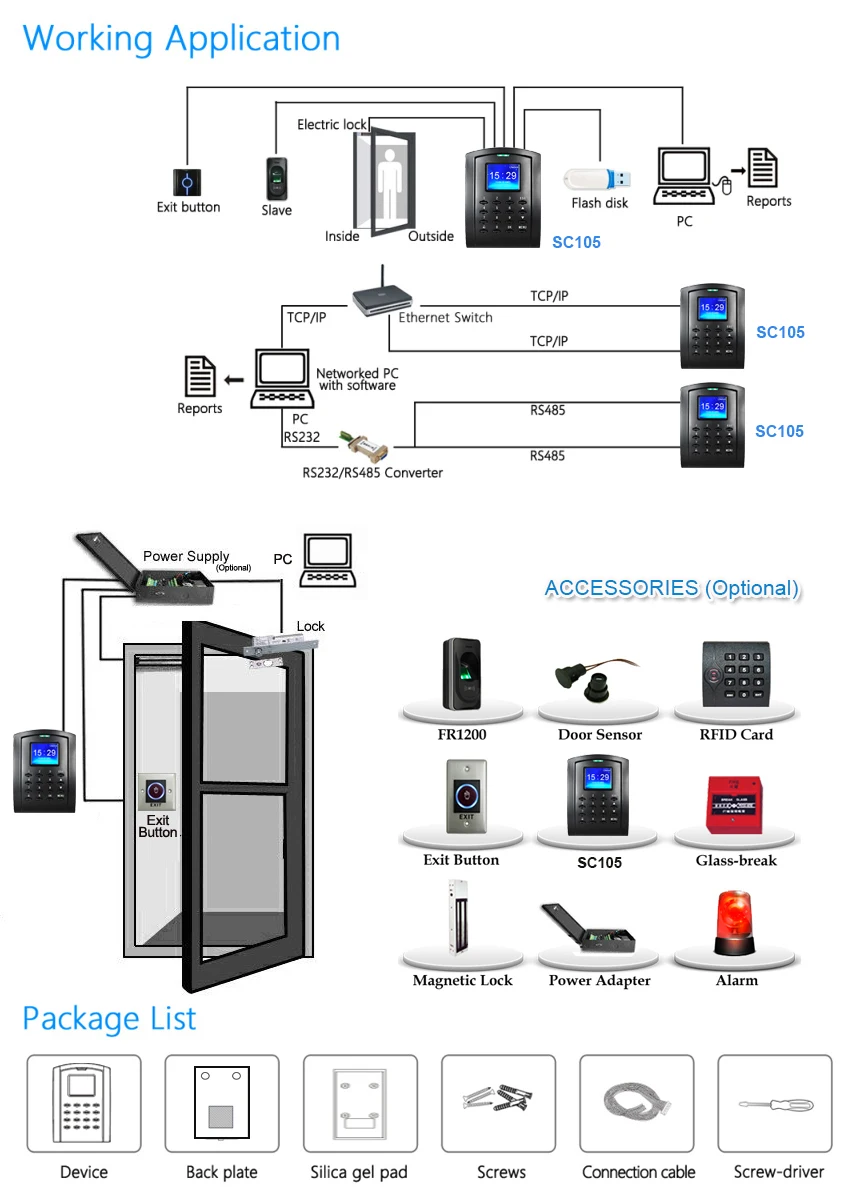

SC105 is a RFID Access Control Terminal which possesses a 2.0-inch color display with graphical UI,enabling simple and easy control. It has a built-in auxiliary input function which enhances the flexibility to be connected with wired detector or emergency switch. With multi-verification methods by combinations of PIN, password and card, high level of security and flexibility are guaranteed. Moreover, the product supports USB flash drive for offline data management, as well as is equipped with multiple alarm outputs such as Tamper Proof Switch and Duress Alarm. Its convenience and adaptability allow it to be well deployed in residential housing, offices and any other public facilities.

Features

Features

* 2.0-inch color display with graphical UI for easy operation

* Up to 24 user-defined schedules that can be activated on a daily bell alert

* Prompt audio acceptance or rejection signals for valid or invalid cards

* TCP/IP or RS485 communication for various networking environments

* Supports USB flash drive for offline data management

* Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch

* Multi-verification methods to enhance security level

* Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.

* Duress Alarm offers effective protection against duress by threats

* Tamper Proof Switch and multiple alarm outputs

* Multi-languages

Specification & Additional Models

Specification

Model	SC105
card Capacity	30,000
Transaction Capacity	80,000
Communication	TCP/IP; RS485, USB-Host

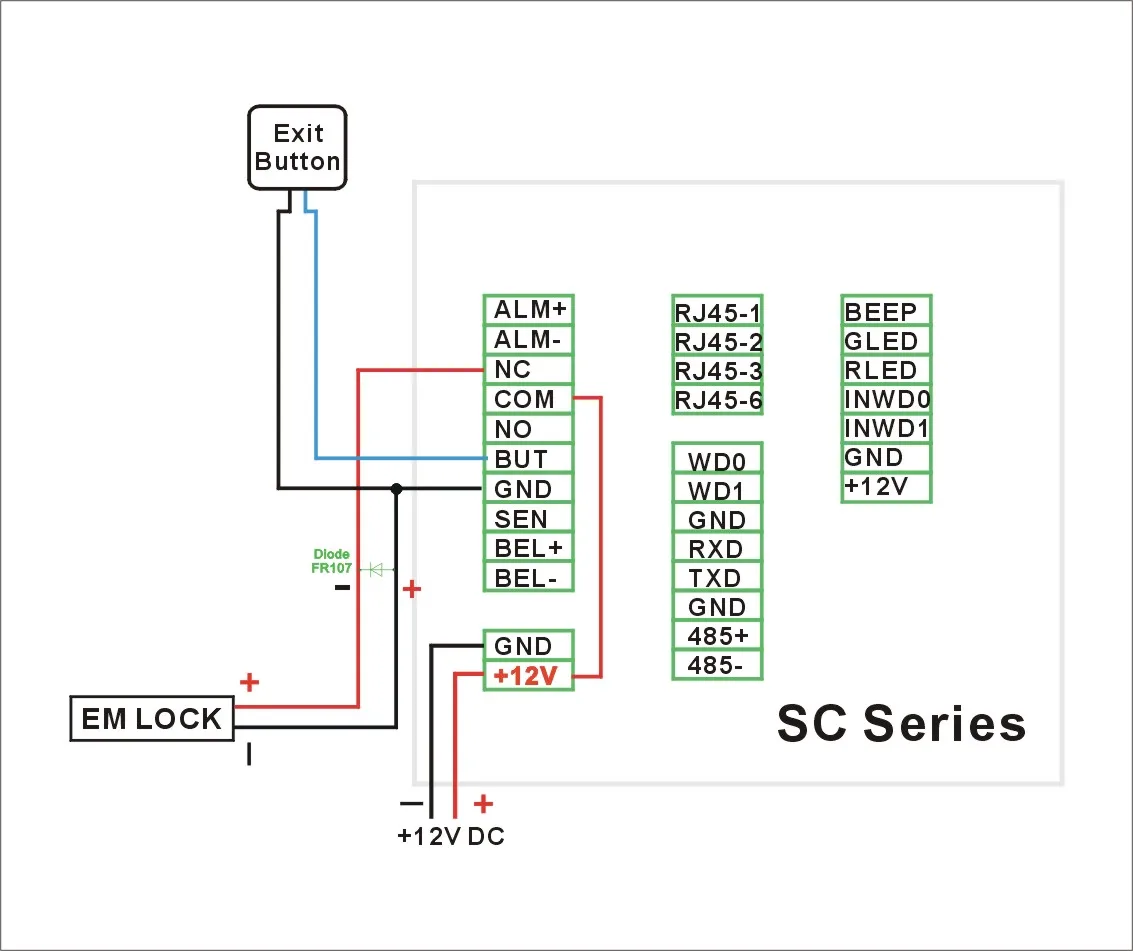

Interface for Access Control	3rd party electric lock door sensor, exit button,alarm,doorbell
Auxiliary Interface	1ea for linkage function
Wiegand Signal	Output&Input, SRB
Standard Functions	Anti-passback
Optional Functions	IC Card reader, Print Function
Display	TFT LCD Color Screen
Power Supply	DC 12V
Operating Temperature	0C~45℃
Operating Humidity	20%~80%
Dimension (LxWxH)	130×94×52mm
SDK	Standalone SDK
Software	ZKAccess3.5
