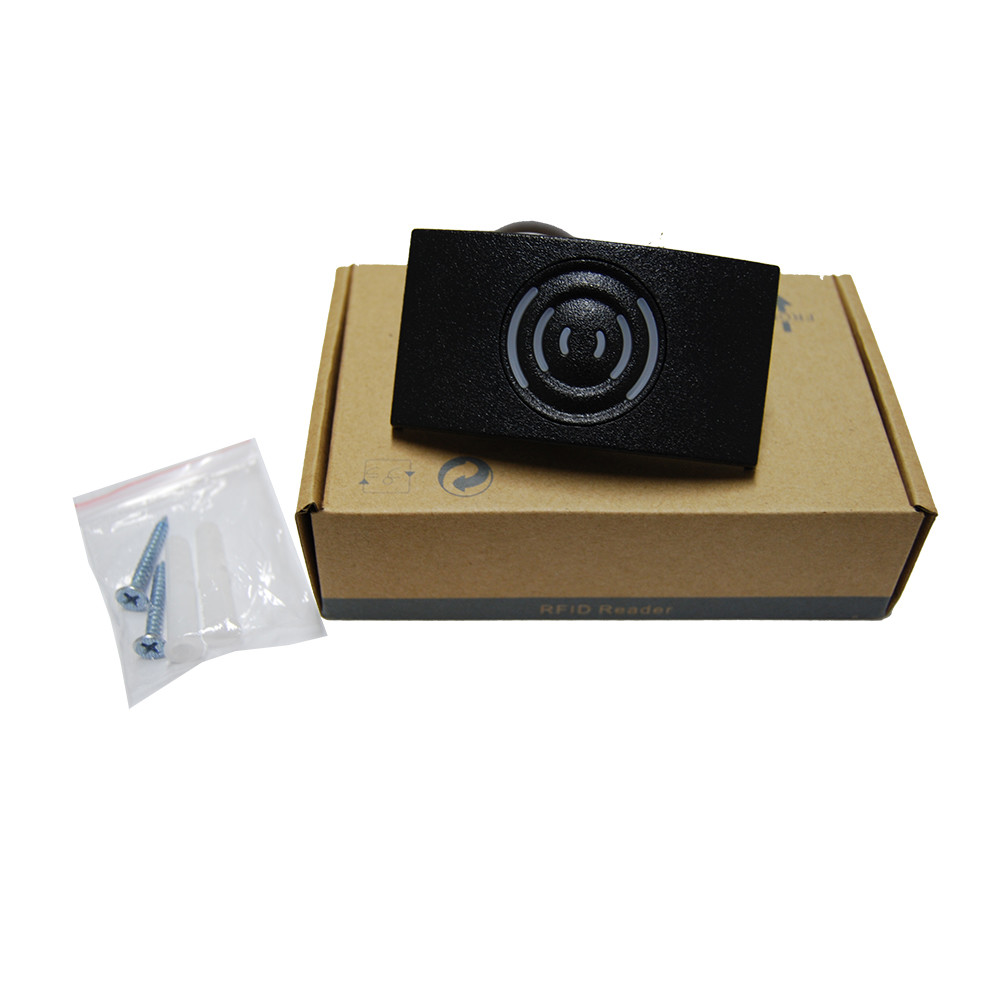

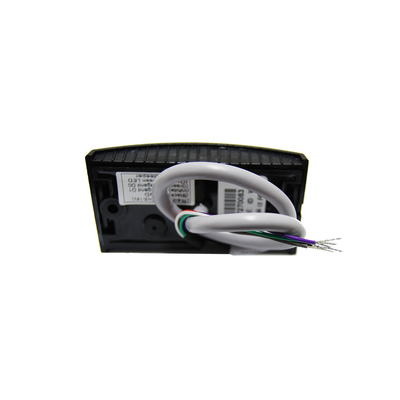

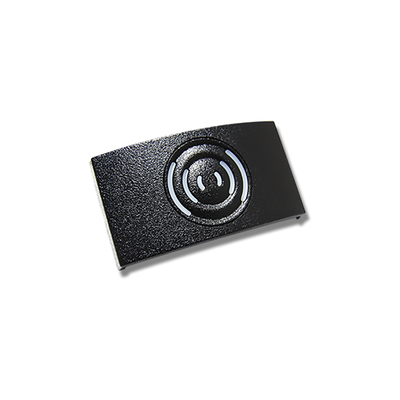

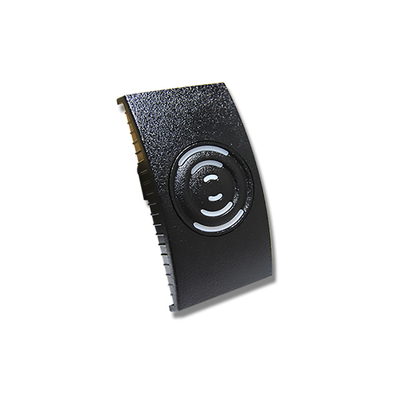

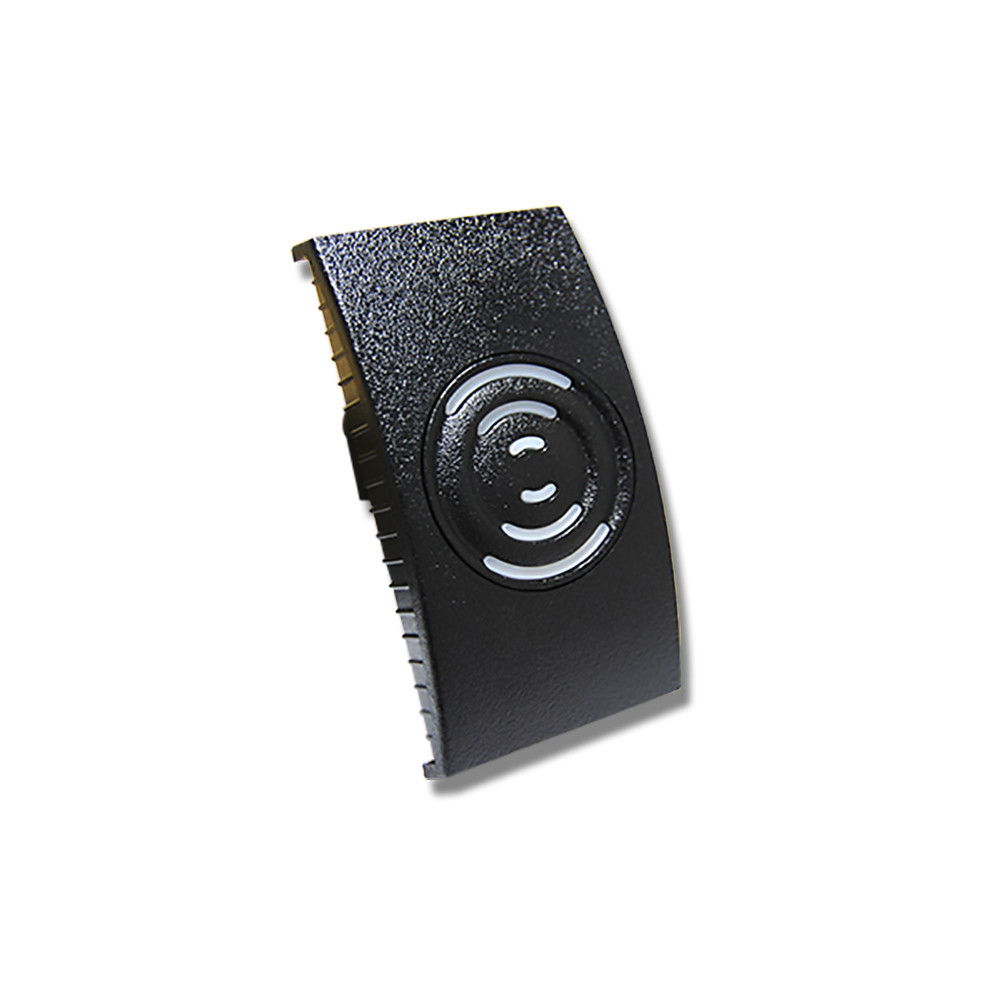

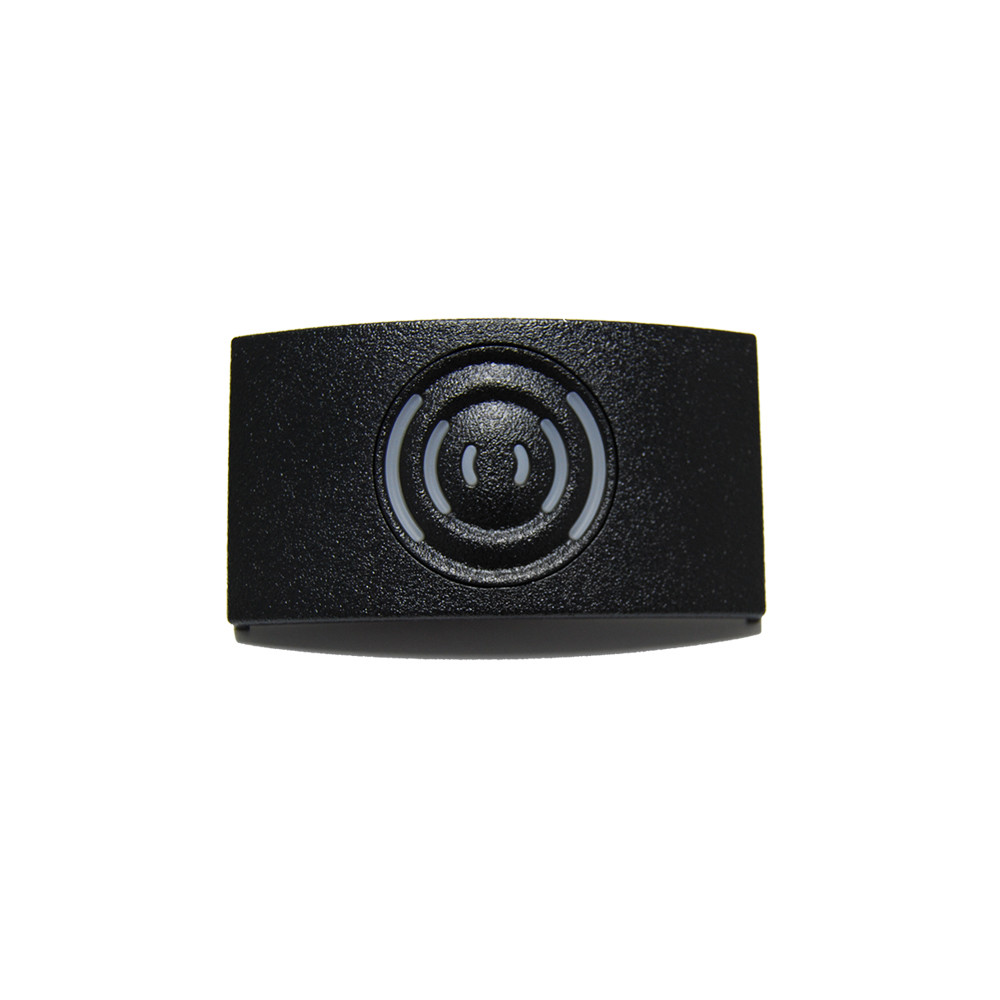

KR201 Wiegand 26/34 RFID Card Access Control Reader 13.56Mhz Waterproof IP65

Place of Origin	CHINA
Brand Name	VANSHUI
Certification	CE,FCC
Model Number	KR201M
Minimum Order Quantity	1
Price	USD10
Packaging Details	Package Weight:1kg Package Size:30cm x 20cm x 8cm
Delivery Time	sample order within 3-4days.
Payment Terms	T/T, Western Union, Paypal
Supply Ability	1000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Output Format	26bit Wiegand (default)/34 Bit Optional	Material	ABS+PC With Texture
Card	13.56MHz ID Card	Color	Black
Power / Current	DC 6-14V / Max.70mA	LED Indicator	2 Color LED Indicators(Red And Green)
Dimension	84.54416.5mm(W X H X T)
High Light	RFID Card Access Control Reader , KR201 Wiegand Access Control Reader , Waterproof IP65 card access systems

Leave a Message

Product Description

PRODUCT DESCRIPTION

Model KR201E or KR201M: RFID Card Access Control Reader with Weigand 26/34 Signal

SPECIFICATION

Model	KR201E or KR201M
Frequency	125Khz ID card reader(KR201E) 13.56Mhz IC card reader(KR201M)
Waterproof Level	IP65
Verification Mode	Card
Reading Range	3-10cm
Wiegand Format	26 or 34 bit
Static Current	50-100mA
Power Supply	DC9-15V
Material	ABS plastic
Operating Temperature	-20℃~60℃
Operating Humidity	10%~90%
Dimension	4484.516.5mm
LED indicator:	Red and Green
Weight:	100g
