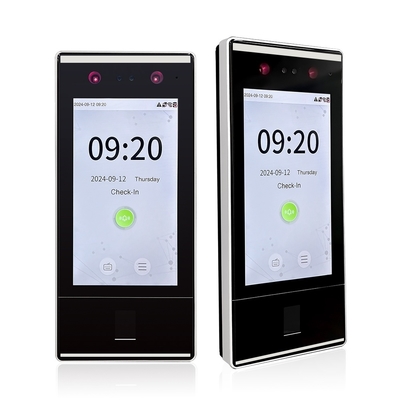

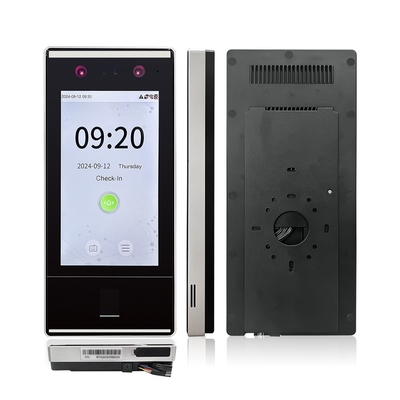

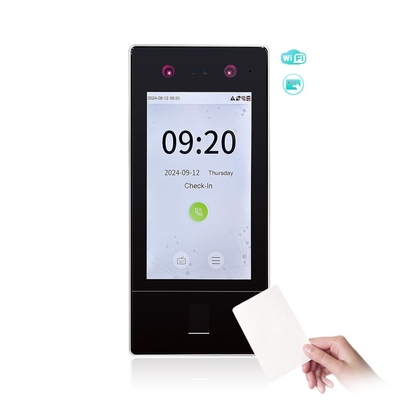

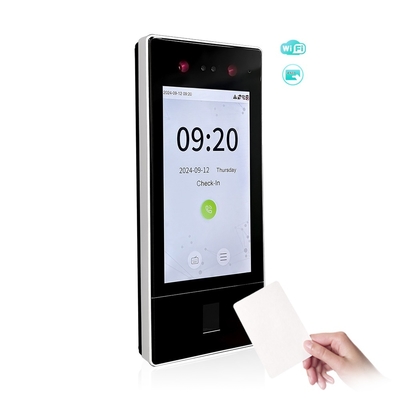

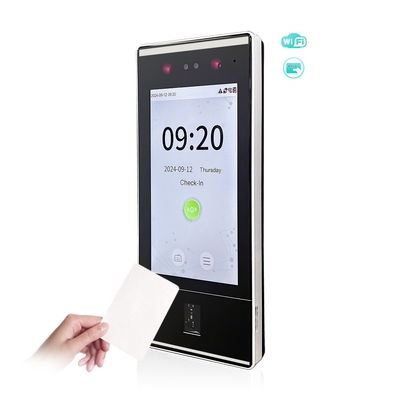

Waterproof IP65 Dustproof Facial and Fingerprint and RFID Card Time Attendance and Access Control Terminal with TPC/IP

Place of Origin	SHANGHAI,CHINA
Brand Name	VANSHUI
Certification	CE,FCC
Model Number	FacePro7
Minimum Order Quantity	1pcs
Price	Negotiation
Packaging Details	Piece Package Weight2 KG Package Size:26cm x 18cm x 9cm
Delivery Time	5-8 working days
Payment Terms	T/T, Western Union,Paypal
Supply Ability	1000Pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Model	FacePro7	Display	7-inch Touch Screen
Face	10,000	Card	50,000
Fingerprint	10,000	Events	3,000,000
Recognition Distance	0.5-2.0 Meters (infrared 3D Live Face)	Communication	WiFi/TCP/IP, USB Host, Wiegand In/out(26/34)
Verification Speed	<0.3 Second	Language	Over 12 Types Languages Available
Camera	1M Infrared Camera, 2M HD Color Camera	Weight	2.5kg
Highlight	stand alone proximity card reader , wireless proximity card reader

Leave a Message

Product Description

Waterproof IP65 Dustproof Facial and Fingerprint and RFID Card Time Attendance and Access Control Terminal with TPC/IP

Key attributes

Type

Biometric Time Recording

Place of Origin

Shanghai, China

Type

Inductive Card (IC/ID/Radio Frequency Card) Type, Multifunctional

Brand Name

VANSHUI

Model Number

FacePro7/ID/WIFI

Display

7''TFT Color Touch LED Screen (600*1024)

Camera

WDR Binocular Camera@1MP

Hardware

CPU: Dual Core 1GHz, RAM: 512MB,ROM:8GB

Authentication method

Fingerprint / Face / Card / Password (virtual keypad)

Capacity

10,000Faces;10,000FPS;50,000CARDS

Authentication Speed

Fingerprint:<0.5Sec;Facial:<0.35Sec

Authentication Distance

30cm to 200cm (Facial Authentication)

Card Type

ID Card 125 kHz(Standard) / IC Card13.56 MHz(Optional)

Power Supply

DC 12V 3A

Supported Software

UTime Master or UAccess Master

Packaging and delivery

Selling Units

Single item

Single package size

43X34X40 cm

Single gross weight

2.000 KG

Product descriptions from the supplier

Products Description

Features

Features

1/ Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication
2/ Attained IP65 Protection Rating With Dustproof and Waterproof
3/ Multiple Authentication Methods: Face / Fingerprint /RFlD/Password
4/ Available RFlD Modules:125KHz ID Card /13.56 MHz IC Card
5/ HD Video Door Phone Via SIP Protocol (optional).
6/ User Data Synchronization: User data can be downloaded/uploaded from one device to another via a UsB drive
7/ Compatible with wireless doorbell (optional)
8/ Advanced access control functions (Wiegand input or output shared; RS485 communication; Electric Lock;Door Sensor; Exit Button)

Specification & Additional Models

Specification

Model	FacePro7
Display	7’’TFT Color Touch LED Screen (600*1024)
Camera	WDR Binocular Camera@1MP
Operation System	Linux
Hardware	CPU: Dual Core 1GHz, RAM: 512MB,ROM:8GB
	Speaker: 8 ohm 1W, Microphone.
	Fingerprint Sensor:In-Glass Fingerprint (Z-ID)
Authentication method	Fingerprint / Face / Card / Password (virtual keypad)
Fingerprint Capacity	10,000 (1:N (Standard)
Face Capacity	10,000 (1:N)
Card Capacity	50,000 (1:N) (Standard)
User Capacity	50,000 (1:N (Standard)
Transaction Capacity	300,000 (1:N)
Max.User Password Length	8 Digits
Biometric Authentication Speed	Less than 0.5 sec(Fingerprint) less than0.35 sec (Facial Authentication)
Authentication Distance	30cm to 200cm (Facial Authentication)
False Acceptance Rate (FAR) %	FAR≤0.01%6 (Visible Light Facial Authentication) FAR≤0.0001% (Fingerprint)
False Rejection Rate (FRR) %	FRR≤0.02% (Visible Light Facial Authentication) FRR≤0.01% (Fingerprint)
Biometric Algorithm	Face:V4.0; Fingerprint:V13.0 (Standard) or V10.0 (Optional)
Card Type	ID Card @125 kHz(Standard) / IC Card@ 13.56 MHz(Optional)
Communication	TCP/IP, Wi-Fi, Wiegand (Input or Output), RS485, USB:Type A (USB Drive Only),Aux inputs ,Electric lock,Door Sensor, Exit Button, 12V Output.
Standard Functions	ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User lD, Access levels,Groups, Holidays, Anti-Passback, Record Query, Schedule Bel,Tamper Switch Alarm,Automatic Status Switch, Multiple Authentication Methods,SIP Client (version 2.0), ONVlF (Compatible with Profile S, Profile T, Profile G, Profile C,Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs /SSH Backend Access, 19 keyboard (Input)
Optional Functions	IC Card, Wi-Fi. Wireless Doorbell
Access Control Interface	RS485 (RS485 Card Reader /Biometric Reader)
Power Supply	DC 12V 3A (Optional)
Operating Temperature	-5℃ to 45℃
Operating Humidity	10% to 90% RH (Non-condensing)
Dimensions	225mm115mm22.3mm (LWH)
Net Weight	0.622 Kg
Supported Software	Software: UTime Master /UAccess Master
Installation	Wall-mount (Compatible with Asian Gang-box/ Single Gang-Box)
Ingress Protection Rating	IP65 (waterproof and dustproof)
Certifications	ISO14001,ISO9001,CE, FCC,RoHS

Additional Models

Model	FacePro7
FacePro7/ID	Fingerprint time attendance system built-in ID reader
FacePro7/IC	Fingerprint time attendance system built-in IC reader
FacePro7/ID/WIFI	Fingerprint time attendance system built-in ID reader with Wi-F Function
FacePro7/IC/WIFI	Fingerprint time attendance system built-in IC reader with Wi-F Function
