Place of Origin:
CHINA
Brand Name:
VANSHUI
Certification:
CE, FCC
Model Number:
EC3101/EC3103
Contact Us

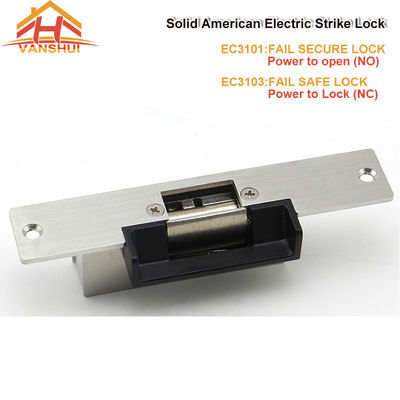

Door Access Control American Type Electric Strike lock with Fail Secure or Fail Safe Function
Feature:
Solid American Standard electronically controlled locking 12V electric locks.
With thick stainless steel production, built in full copper coils.
Quality stable 12V operating voltage power lock to force small and best price.
Suitable for small glass door installation door.
Embedded installation, beautiful appearance, electromagnetic part made of high quality magnetic materials and special process, Long working hours does not produce residual magnetism, ensure the normal use.
Application for swinging 90 degree wooden door or stainless steel door
Specification:
| Model | EC3101 | EC3103 |
| Product Parameter | Parameter Description | |
| Feature |
Fail Secure Lock Power to open |
Fail Safe Lock Power to lock |
| Strike Structure | 304 Stainless Steel | |
| Holding Force | 800kg | |
| Voltage | DC12V input (DC24V is optional) | |
| Current | 240mA (NO) | 120mA(NC) |
| Suitable For | Wooden Door, Metal Door, PVC Door | |
| Surface Temperature | ≤+20℃ | |
| Suitable Temperature | -10~+55℃(14-131F) | |
| Operating Humidity | 0~90%(non-condensing) | |
| Cover Finish | Cover Finish | |
| Lock Finish | Stainless Steel | |
| Face plate Housing | Stainless Steel | |
| Function | Built-out MOV | |
| Face Plate Size | 150L*28W*35H(mm) | |
| Lock Body Size | 29L*17W*11H(mm) | |
| Weight | 0.4kg | |
Users can select appropriate models and functions according to the following table.
