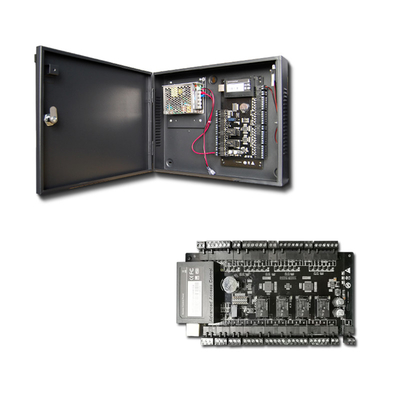

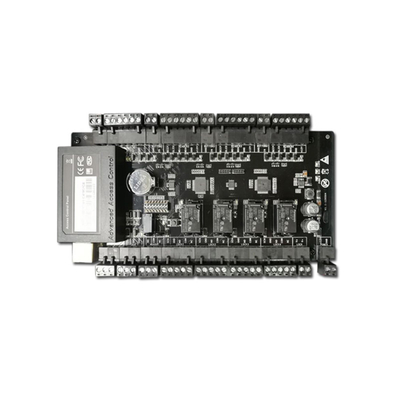

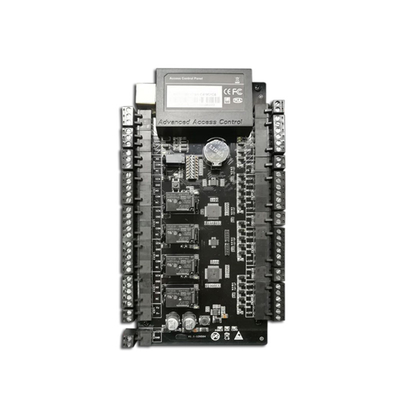

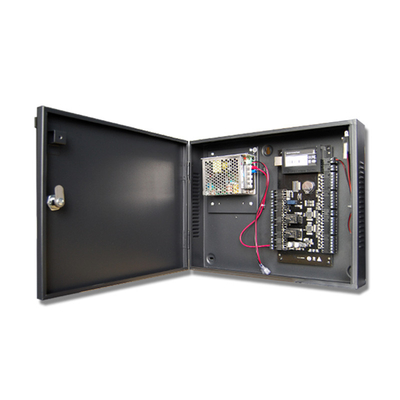

4 Doors Access Control Panel with Power Adapter Metal Box/Access Control Board with TCP/IP & Wiegand Signal(C3-400/BOX)

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description | 4 Door Access Control Panel With Box | Type | Support RFID Card Reader |
---|---|---|---|
LED Indicator | Yes, LED Indication For Communication, Power, Status And Punch Card | Input Port | 12ea (Exit Button*4, Door Sensor*4,Aux*4) |
Output Port | 4ea (4 FORM-C Relay Output, SPDT 5A@36VDC/ 8A@30VAC) | Operating Temperature | 0℃-55℃ |
Operating Humidity | 10% To 80% Relative Humidity Non-condensing | User | 30,000 |
Event Buffer | 100,000 | Dimension(L*W)mm | 160(W)*106(H)(single Board) 345(W)*275(H)*70(D)(with Power Supply And Metal Box) |
Highlight | door release button access control,home access control system |
Product Description
PRODUCT DESCRIPTION

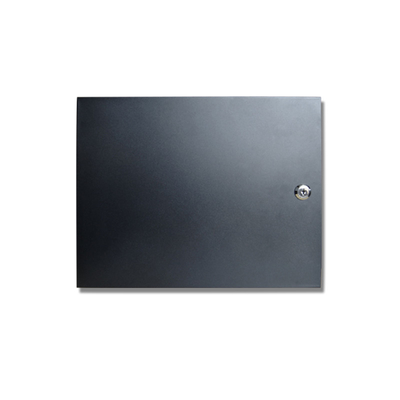

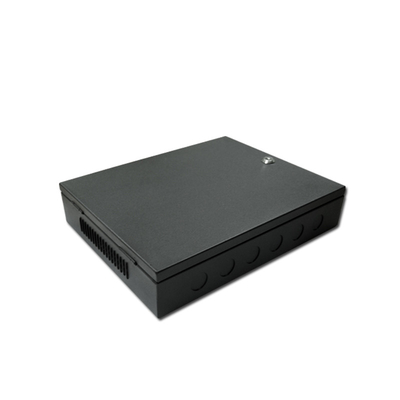

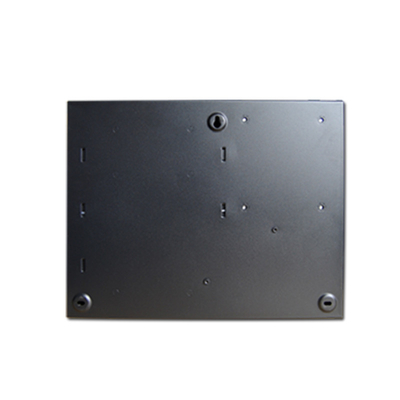

Model C3-400/BOX is Multi-door access control panel. It is one of the most rugged and reliable controllerson the market, with a multitude of built-in features. It can store up to 30,000 cardholders, canconnect RFID reader to the panel via Wiegand. It also supports real-time monitoring, communicatevia RS-485 configuration or Ethernet TCP/IP networks. Metal power box of the acces control panelis optional.
FEATURES
1/ There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.
2/ Multiple hardware protection measure.
3/ C3-400/BOX can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.
4/ Supports different wiegand reader (wiegand 26-40 bit).
5/ The controller support different wiegand format and can connect to different reader, including ID card reader and MF card reader.
6/ Input/Output Ports to Control Doors
7/ Connect with variety of sensors, alarms, exit buttons, electric lock and other devices.
8/ Variety of Communication Function
9/ Using either serial or TCP/IP communication, it provides reliable network system
10/ Normal open after first punch card can be setup
11/ Real-time Monitoring of Door status
12/ Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.
13/ Interlock function
14/ Link different doors with special logic that one door is Open, others should be closed.
15/ Multi-card operation
16/ This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed
number registered cards are read together.
17/ Anti-Passback, Duress Mode, SDK available
18/ The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.
2/ Multiple hardware protection measure.
3/ C3-400/BOX can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.
4/ Supports different wiegand reader (wiegand 26-40 bit).
5/ The controller support different wiegand format and can connect to different reader, including ID card reader and MF card reader.
6/ Input/Output Ports to Control Doors
7/ Connect with variety of sensors, alarms, exit buttons, electric lock and other devices.
8/ Variety of Communication Function
9/ Using either serial or TCP/IP communication, it provides reliable network system
10/ Normal open after first punch card can be setup
11/ Real-time Monitoring of Door status
12/ Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.
13/ Interlock function
14/ Link different doors with special logic that one door is Open, others should be closed.
15/ Multi-card operation
16/ This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed
number registered cards are read together.
17/ Anti-Passback, Duress Mode, SDK available
18/ The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.
