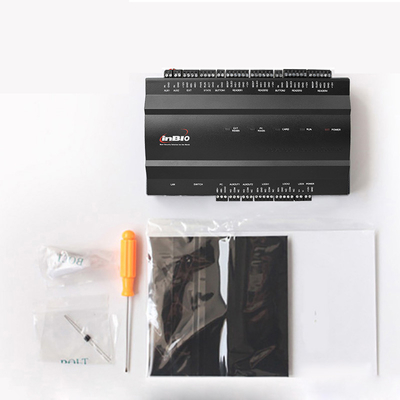

Two Doors Access Control Panel with Power Adapter Box Support Access 3.5 Software TCP/IP/RS485/Wiegand(inBio260/BOX)

Two Doors Access Control Panel with Power Adapter Box Support Access 3.5 Software TCP/IP/RS485/Wiegand(inBio260/BOX)

door release button access control

security sensors for doors and windows

Place of Origin:

SHANGHAI,CHINA

Brand Name:

VANSHUI

Certification:

CE,FCC

Model Number:

inBIO260/BOX

Contact Us

Request A Quote
Product Details
Description:
Two Doors Access Control With Power Adapter Box
Number Of Doors Controlled:
2 Doors
RAM/Flash Memory:
32M Bits/128M Bits
Fingerprint Capacity:
3,000FPS
Card Capacity:
30,000CARDS
Log Events Capacity:
100,000
CPU:
32bit MIPS CPU
Product Description
Products Description

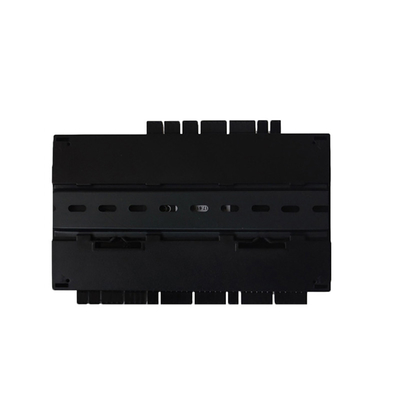

Two Doors Access Control Panel with Power Adapter Box Support Access 3.5 Software TCP/IP/RS485/Wiegand(inBio260/BOX) 0

Two Doors Access Control Panel with Power Adapter Box Support Access 3.5 Software
Access System built on flexible, open technology to provide management, real-time monitoring, and control of your access control system-all from a browser, with no additional software to install. Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location.
inBio 260versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features. The inBio 260 can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders.
SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.

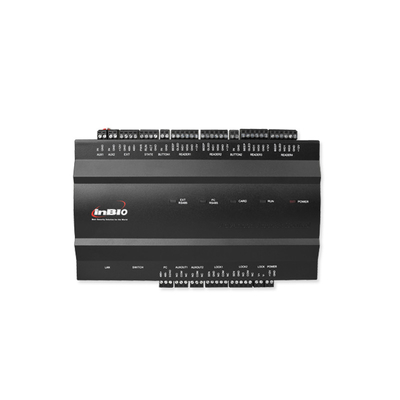

Two Doors Access Control Panel with Power Adapter Box Support Access 3.5 Software TCP/IP/RS485/Wiegand(inBio260/BOX) 1
Features

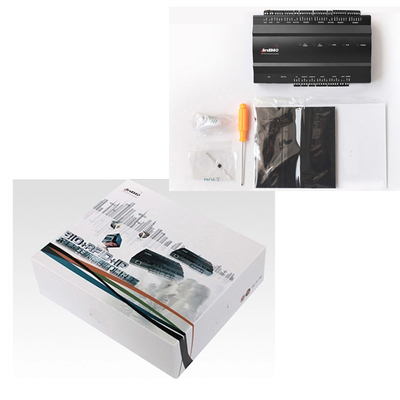

Two Doors Access Control Panel with Power Adapter Box Support Access 3.5 Software TCP/IP/RS485/Wiegand(inBio260/BOX) 2
Specification
Model
inBIO260 with box
Fingerprint Capacity
3,000
Card Capacity
30,000
Transaction Capacity
100,000
CPU
32Bit 400MHZ CPU
RAM
32M Bit
Flash Memory
128M Bit
Power
DC 9.6V-14.4V, Rated Max.1A
Operating Temp.
0-45℃
Communication
TCP/IP, RS-485
Operating Humidity
20% to 80% relative humidity non-condensing
Number of doors controller
2 Doors
Number of Inputs
6( 2 Exit Device, 2 Door Status, 2 AUX)
Number of Outputs
4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output)
Numbers of readers supported
8(4 RS-485 Reader, 4 26-bit wiegand reader)
Types of readers supported
26-bit Wiegand and RS485 FR Series Reader
LED Indicator
Yes, LED indication for communication, power, status and punch card
Package Dimension (H*W*D)mm2
250*200*80(Single board),weight:1.5KG
400*350*120(with power supply and metal cabinet),4KG
Software
Access3.5

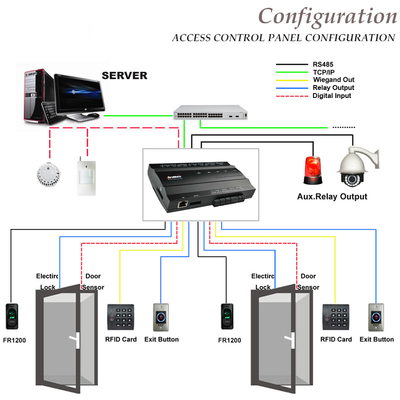

Working Application
Two Doors Access Control Panel with Power Adapter Box Support Access 3.5 Software TCP/IP/RS485/Wiegand(inBio260/BOX) 3
Details Images

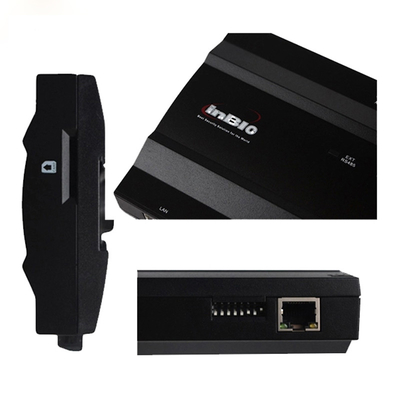

Two Doors Access Control Panel with Power Adapter Box Support Access 3.5 Software TCP/IP/RS485/Wiegand(inBio260/BOX) 4

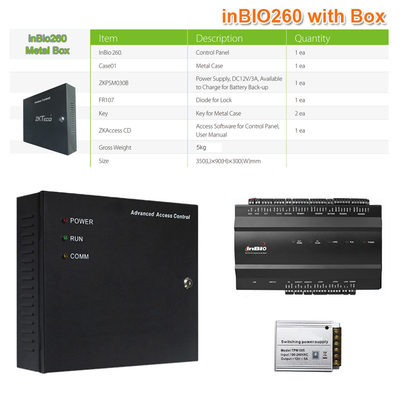

Two Doors Access Control Panel with Power Adapter Box Support Access 3.5 Software TCP/IP/RS485/Wiegand(inBio260/BOX) 5

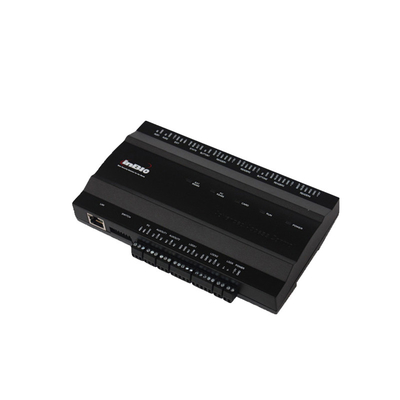

Two Doors Access Control Panel with Power Adapter Box Support Access 3.5 Software TCP/IP/RS485/Wiegand(inBio260/BOX) 6

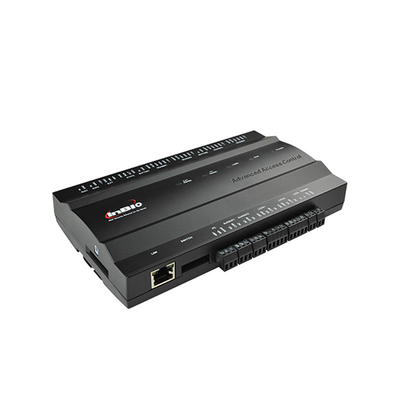

Two Doors Access Control Panel with Power Adapter Box Support Access 3.5 Software TCP/IP/RS485/Wiegand(inBio260/BOX) 7
Two Doors Access Control Panel with Power Adapter Box Support Access 3.5 Software TCP/IP/RS485/Wiegand(inBio260/BOX) 8
Two Doors Access Control Panel with Power Adapter Box Support Access 3.5 Software TCP/IP/RS485/Wiegand(inBio260/BOX) 9
Two Doors Access Control Panel with Power Adapter Box Support Access 3.5 Software TCP/IP/RS485/Wiegand(inBio260/BOX) 10
Two Doors Access Control Panel with Power Adapter Box Support Access 3.5 Software TCP/IP/RS485/Wiegand(inBio260/BOX) 11
Software
Two Doors Access Control Panel with Power Adapter Box Support Access 3.5 Software TCP/IP/RS485/Wiegand(inBio260/BOX) 12



Company Information
Two Doors Access Control Panel with Power Adapter Box Support Access 3.5 Software TCP/IP/RS485/Wiegand(inBio260/BOX) 13
