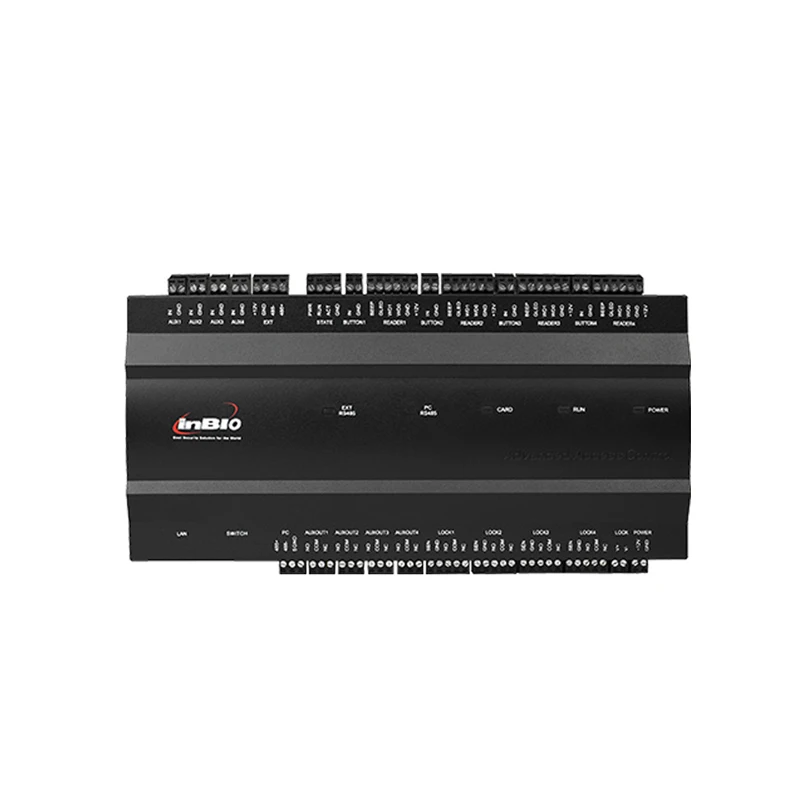

Name: Access Control Panel for 4 Doors Support Fingerprint and RFID Card Reader Access Controller(inBIO460)
Brand: VANSHUI
SKU: inBIO460/BOX
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (143 reviews)

Home > products > Door Access Control Panel >

Access Control Panel for 4 Doors Support Fingerprint and RFID Card Reader Access Controller(inBIO460)

security sensors for doors and windows

home access control system

Place of Origin:

SHANGHAI,CHINA

Brand Name:

VANSHUI

Certification:

CE,FCC

Model Number:

inBIO460/BOX

Request A Quote

Access Control Panel for 4 Doors Support Fingerprint and RFID Card Reader Access Controller(inBIO460)

Product Details

Product Description:

Access Control Board For 4 Doors

Number Of Inputs:

12(4 Exit Device,4 Door Status, 4 AUX)

Number Of Outputs:

8 (4-Form C Relay For Lock And 4 Form C Relay For Aux Output)

Card Capacity:

30,000

Fingerprint Capacity:

3,000 Fps

Transaction Capacity:

100,000

Number Of Doors Controlled:

4 Doors

CPU:

32 Bit 400MHz CPU

Communication Port:

TCP/IP, RS485

janeji@vanshui.com

Contact Now

Product Description

PRODUCT DESCRIPTION

Access Systems are built on flexible, open technology to provide management, real-time monitoring, and control of your access control system-all from a browser, with no additional software to install. Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. The inBio460 versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features. The inBio460 can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.

FEATURES

Multiple hardware protection measure

There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.

Integration with Other Security Systems

The inBio 460 can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.

Supports different wiegand reader

Wiegand format, and can connect to different reader, including ID card reader and MF card reader

Input/Output Ports to Control Doors

Connect with variety of sensors, alarms, exit buttons, electric lock and other devices.

Variety of Communication Function

Using either serial or TCP/IP communication, it provides reliable network system

B/S structure software

It is easy to manage the system by browser from client PC. There is no need to install software on each client.

Normal open after first punch card can be setup

Real-time Monitoring of Door status

Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.

Simple Access Control System Configuration

Interlock function

Link different doors with special logic that one door is Open, others should be closed.

Multi-card operation

This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed number

registered cards are read together.

Anti-Passback

Duress Mode

The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.

SPECIFICATION

Model	Inbio460
Fingerprint Capacity	3,000
Card Capacity	30,000
Transaction Capacity	100,000
Communication	TCP/IP, RS-485
CPU	32 bit 400MHz CPU
RAM	32M bit
Flash Memory	128M bit
Number of doors controller	4 Doors
Number of Inputs	12(4 Exit Device,4 Door Status, 4 AUX)
Number of Outputs	8 (4-Form C Relay for Lock and 4 Form C Relay for Aux Output)
Numbers of readers supported	12(8 RS-485 Reader, 4 26-bit wiegand reader)
Types of readers supported	26-bit Wiegand and RS485 FR Series Reader
Power	DC 9.6V-14.4V, Rated Max.1A
Operating Temp.	0-45℃
Operating Humidity	20% to 80% relative humidity non-condensing
LED Indicator	Yes, LED indication for communication, power, status and punch card
Package Dimension	25020080(Single board),weight:1.5KG 400350125(with power supply and metal cabinet),4KG
Software	ACCESS 3.5

DIAGRAM

DETAILS

SOFTWARE

PRODUCTS PACKAGE

COMAPANY INFORMATION
