Power Adapter Box Signal Access Control Panel with TCP/IP and Wiegand & Door Access Control Board(C3-100/BOX)

Power Adapter Box Signal Access Control Panel with TCP/IP and Wiegand & Door Access Control Board(C3-100/BOX)

door release button access control

security sensors for doors and windows

Place of Origin:

SHANGHAI,CHINA

Brand Name:

VANSHUI

Certification:

CE,FCC

Model Number:

C3-100/BOX

Contact Us

Request A Quote
Product Details
Description:
Single Door Access Control Panel With Power Adapter Box
CPU:
32bit MIPS CPU
User:
30,000
Event Buffer:
100,000
Number Of Readers Supported:
26-bit Wiegand, Others Upon Request
Reader Port:
2ea (26bit Wiegand, 8 Bit For PIN)
Communication:
RS485, TCP/IP
Power/Current:
DC9.6V-14.4V, Rated Max.1A
Software:
Access 3.5
Product Description
PRODUCT DESCRIPTION
Power Adapter Box Signal Access Control Panel  with TCP/IP and Wiegand & Door Access Control Board(C3-100/BOX) 0

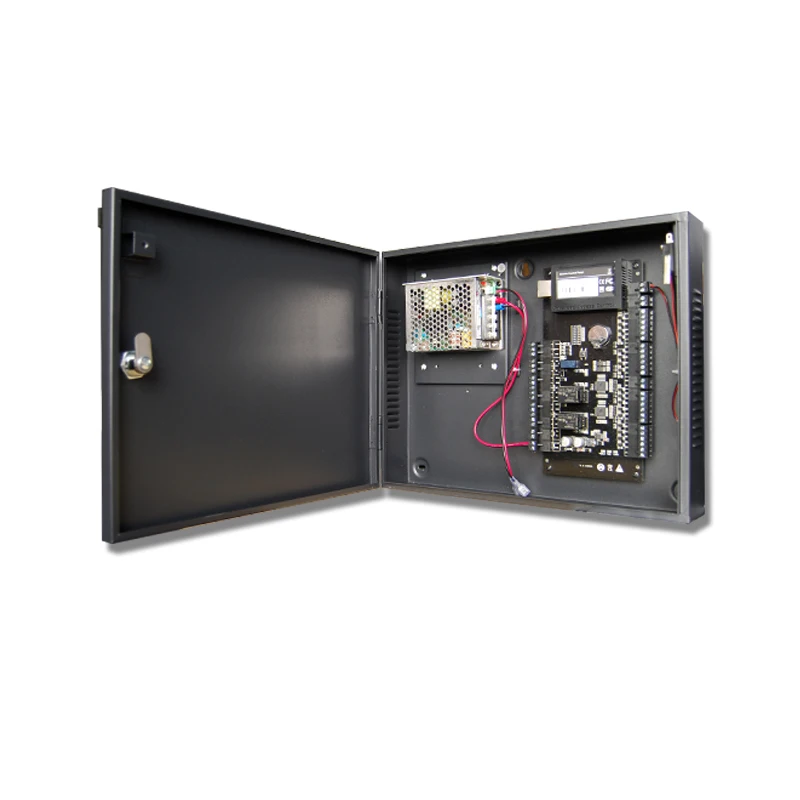

Model C3-100/BOX is Multi-door access control panel with Mental Power Adapter Box. It is one of the most rugged and reliable controllerson the market, with a multitude of built-in features. It can store up to 30,000 cardholders, canconnect RFID reader to the panel via Wiegand. It also supports real-time monitoring, communicatevia RS-485 configuration or Ethernet TCP/IP networks. Metal power box of the acces control panelis optional.
FEATURES
1/ There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.
2/ Multiple hardware protection measure.
3/ C3-100/BOX can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.
4/ Supports different wiegand reader (wiegand 26-40 bit).
5/ The controller support different wiegand format and can connect to different reader, including ID card reader and MF card reader.
6/ Input/Output Ports to Control Doors
7/ Connect with variety of sensors, alarms, exit buttons, electric lock and other devices.
8/ Variety of Communication Function
9/ Using either serial or TCP/IP communication, it provides reliable network system
10/ Normal open after first punch card can be setup
11/ Real-time Monitoring of Door status
12/ Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.
13/ Interlock function
14/ Link different doors with special logic that one door is Open, others should be closed.
15/ Multi-card operation
16/ This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed
number registered cards are read together.
17/ Anti-Passback, Duress Mode, SDK available
18/ The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.
SPECIFICATION
Model
C3-100/BOX
CPU
32bit MIPS CPU
RAM
32M bits
Flash Memory
256M bits
User
30,000
Event Buffer
100,000
Power/Current
DC9.6V-14.4V, Rated Max.1A
Reader Port
2ea (26bit Wiegand, 8 bit for PIN)
Communication
RS485, TCP/IP
Baud Rate
38,400bps(Recommended)/ 9600bps, 19,200bps,57,600bps(selectable)
Input Port
2ea (Exit Button#1, Door Sensor#1)
Output Port
1ea (1 FORM-C Relay Output, SPDT 5A@36VDC/ 8A@30VAC);
1ea (1 Aux FORM-C Relay Output, SPDT 2A@30VAC)
LED Indicator
Yes, LED indication for communication, power, status and punch card
Operating Temperature
0℃ to 55℃
Operating Humidity
10% to 80% relative humidity non-condensing
Dimension (mm)
160(W)*106(H)(Single board)
345(W)*275(H)*70(D)(with power supply metal box)
DIAGRAM
Power Adapter Box Signal Access Control Panel  with TCP/IP and Wiegand & Door Access Control Board(C3-100/BOX) 1
DETAILS
Power Adapter Box Signal Access Control Panel  with TCP/IP and Wiegand & Door Access Control Board(C3-100/BOX) 2
Power Adapter Box Signal Access Control Panel  with TCP/IP and Wiegand & Door Access Control Board(C3-100/BOX) 3
Power Adapter Box Signal Access Control Panel  with TCP/IP and Wiegand & Door Access Control Board(C3-100/BOX) 4
Power Adapter Box Signal Access Control Panel  with TCP/IP and Wiegand & Door Access Control Board(C3-100/BOX) 5
Power Adapter Box Signal Access Control Panel  with TCP/IP and Wiegand & Door Access Control Board(C3-100/BOX) 6
Power Adapter Box Signal Access Control Panel  with TCP/IP and Wiegand & Door Access Control Board(C3-100/BOX) 7
Power Adapter Box Signal Access Control Panel  with TCP/IP and Wiegand & Door Access Control Board(C3-100/BOX) 8
Power Adapter Box Signal Access Control Panel  with TCP/IP and Wiegand & Door Access Control Board(C3-100/BOX) 9
Power Adapter Box Signal Access Control Panel  with TCP/IP and Wiegand & Door Access Control Board(C3-100/BOX) 10
SOFTWARE
Power Adapter Box Signal Access Control Panel  with TCP/IP and Wiegand & Door Access Control Board(C3-100/BOX) 11
PRODUCTS PACKAGE
Power Adapter Box Signal Access Control Panel  with TCP/IP and Wiegand & Door Access Control Board(C3-100/BOX) 12
Power Adapter Box Signal Access Control Panel  with TCP/IP and Wiegand & Door Access Control Board(C3-100/BOX) 13

Power Adapter Box Signal Access Control Panel  with TCP/IP and Wiegand & Door Access Control Board(C3-100/BOX) 14
