Building Access Control Systems Drop Arm Turnstile , Electronic Turnstile Gates

Place of Origin CHINA
Brand Name VANSHUI
Certification CE,FCC
Model Number TS1211
Minimum Order Quantity 1
Price Negotiation
Packaging Details Dimension with packing (mm):L=730,W=450,H=1080;Weight with packing (KG):63
Delivery Time 5-8working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Model TS1211 Power Requirements AC 220V/110V, 50/60HZ
Working Temperature -28℃ To 60℃ Working Humidity 5%-85%
Working Environment Indoor/outdoor(if Sheltered) Lane Width(mm) 520
Footprint (mm*mm) 600*1370 Dimension(mm) L=600,W=330, H=990, + Arm Length 52cm*2 Sides
Dimension With Packing (mm) L=730,W=450,H=1080 Weight With Packing (KG) 63
Reader ID Or IC Card Reader
High Light

3 arm turnstile


turnstile access control system

Leave a Message
Product Description

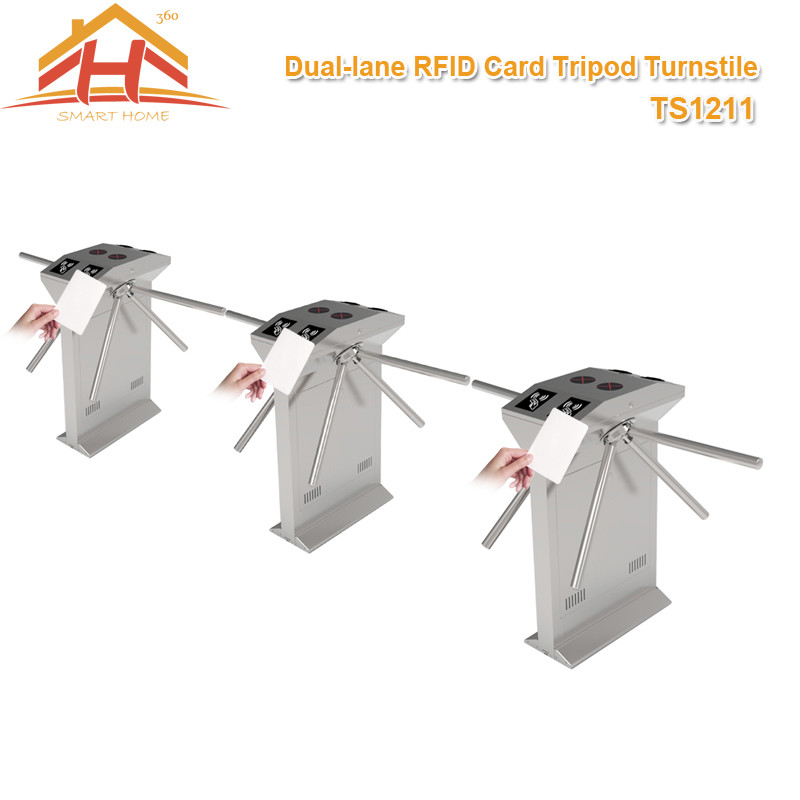

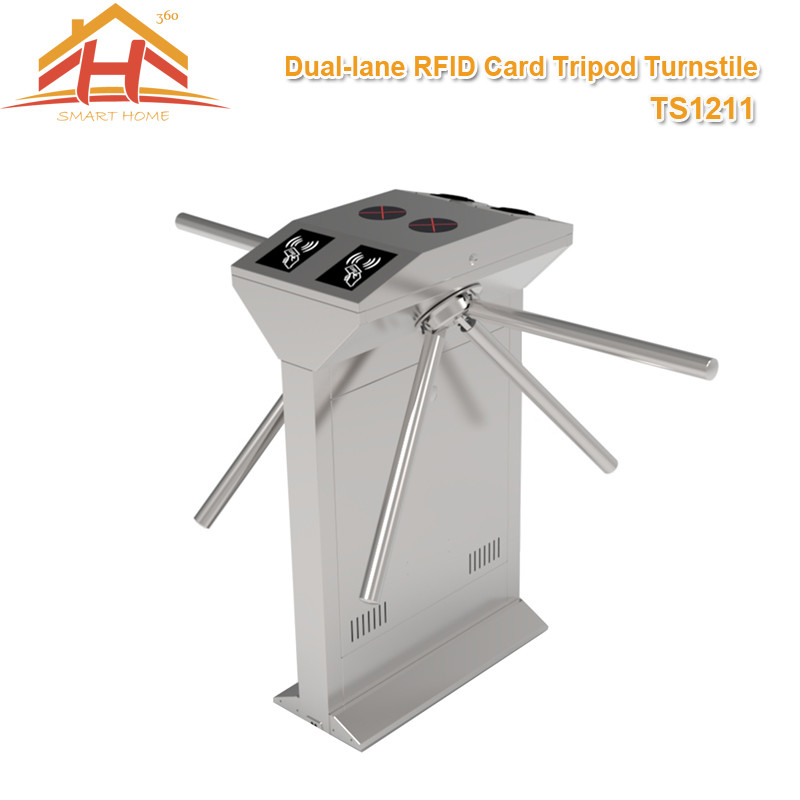

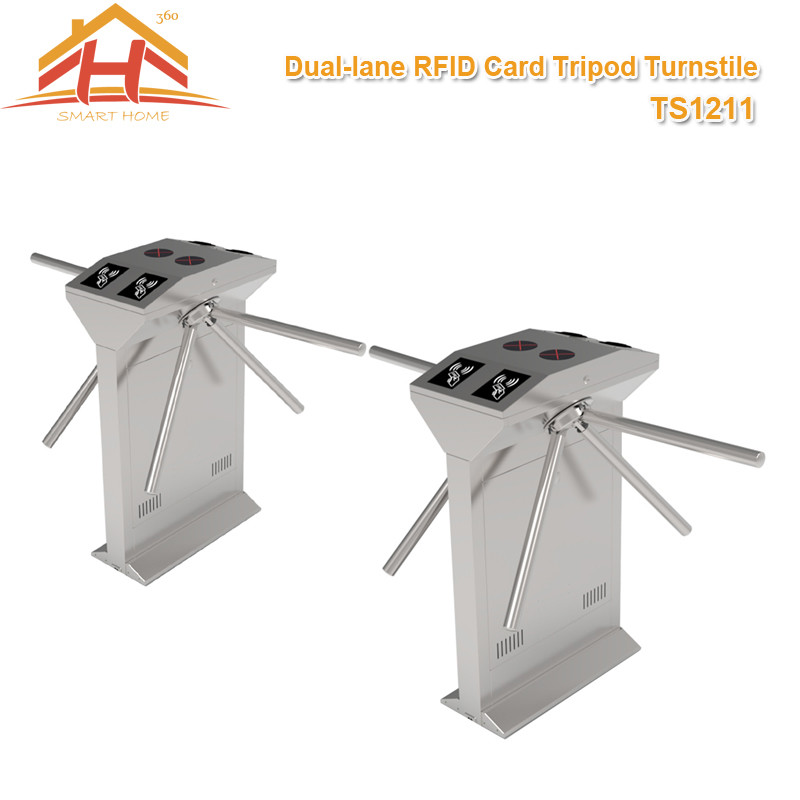

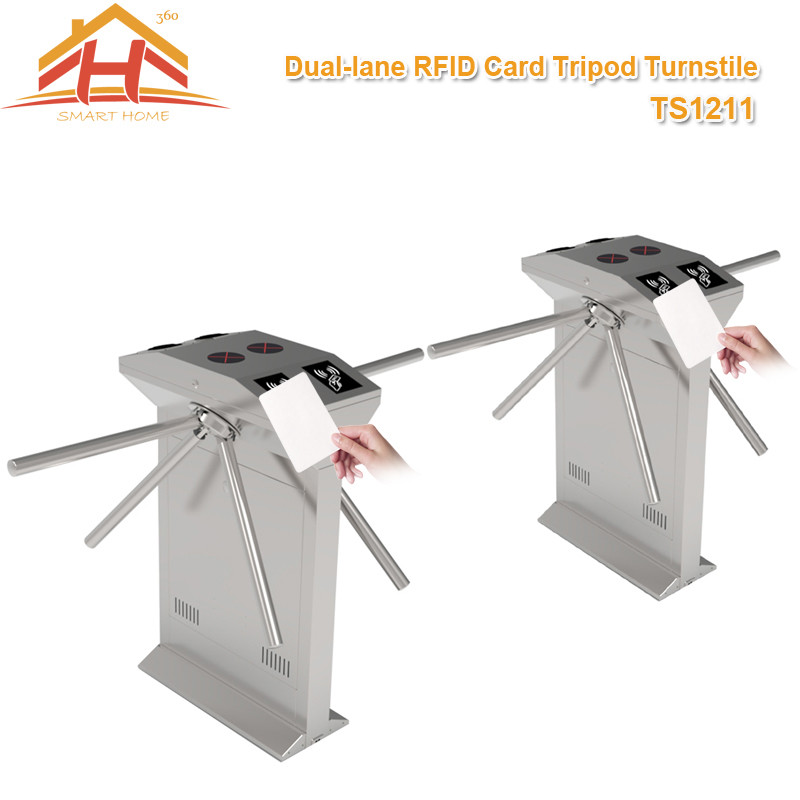

Building Access Control Systems Drop Arm Turnstile , Electronic Turnstile Gates


RFID Reader SUS304 Stainless Steel Drop Arm Tripod Turnstile

Building Access Control Systems Drop Arm Turnstile , Electronic Turnstile Gates 0


Model Name

Drop Arm

Tripod Turnstile

Item Description
TS1211 Dual-lane Turnstile with Controller and RFID Reader(Cones with 2 RFID card readers and 1 Controller)


TS1200 is a dual-lane tripod turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes TS1200 highly durable. TS1200 is also surprisingly compact and designed to operate in small workspaces.

TS1200 tripod arms are normally held in a locked position, thus denying access to the secured side. Upon TS1200’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its tripod arms unlock, thus allowing users passage to the secured side.

Option for built-in REX button allows users to conveniently exit the secured side without needing to use their access card or fingerprint.

During emergencies and power outages the tripod arms completely collapse, thereby ensuring users FAST unencumbered exit to safety.

TS1200 provides both security and convenience, all in a very durable compact design.


Model TS1211 RFID card Drop Arm Tripod Turnstile
Power Supply AC110V/220V, 50/60Hz
Power Consumption Starting: 82W, Standby: 29W, Unlock: 76W
Working Temperature -28 °C - 60 °C
Operating Humidity 5%-80%
Working Environment indoor/ Outdoor (if sheltered)
Optional Function Controller and RFID Reader or Controller and Fingerprint & RFID Reader
Speed of throughput RFID: Maximum 30/min, Fingerprint: Maximum 25/min
Lane width 520mm
Footprint 600*1370mm
Dimension 600(L)*330(W)*990(H)mm
Dimension with packing 730(L)*450(W)*1080(H)mm
Net weight 55kg
Weight with packing 63kg
LED indicator Y
Cabinet material SUS304 Stainless Steel
Lid material SUS304 Stainless Steel
Barrier material SUS304 Stainless Steel
Barrier Movement Rotating
Emergency mode Y
Security level Medium
MCBF 1 million
Options/Accessories Counter, SUS316 Cabinet and Lid, Remote Control




1. Any Inquiry will be replled with in 24 hours.
2. OEM available:
1) Slik print logo on the goods
2) Customized goods firmware
3) Customized color case,MOQ is 1000pcs
4) The MOQ is 100units for OEM

3. Hight quality, fashion designs, reasonable & competitive price, faster lead time.
The MOQ of standard types is 2units.

4. After-sale Service:
1) All products will have been strictly quanlity checked in house before packing.
2) All products will be well packing before shipping.
3) All our products have 1-2 year warranty, and we sure the product will be free from maintenance within warranty period.

5. Faster delivery:
Sample order in stock, and 4-5 weeks for bulk production

6. Payment:
You can pay for the orer via: T/T, Western Union,Paypal.
Total price is based on FOB Shanghai.
If the total amount is less than USD500, we prefer Paypal or Western Union.
For bigger amount we accept bank transfer.

7. Shipment:
Fast delivery: DHL, TNT, UPS. FedEx or EMS.It usually take 3-7 working days.
Cheap delivery: By air or by sea, take 25 to 50 working days.
You also can choose your own shipping forwarder.
