Small Wireless Electromagnetic Lock 330LBS Holding Force Waterproof Magnetic Lock
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Holding Force | 150kg (330Lbs) | Input Voltage | 12VDC |
|---|---|---|---|
| Suitable For Door | Wooden Door , Glass Door(no Frame Door) ,Metal Door , Fireproof Door | Opening Mode | Swinging Door 90 Degree |
| Feature | Power To Lock Or Timer Delay, With LED | Operation Temperature | -20°C ~ 55°C |
| Weight | 1kgs | ||
| High Light | em lock,electromagnetic door lock |
||
Product Description

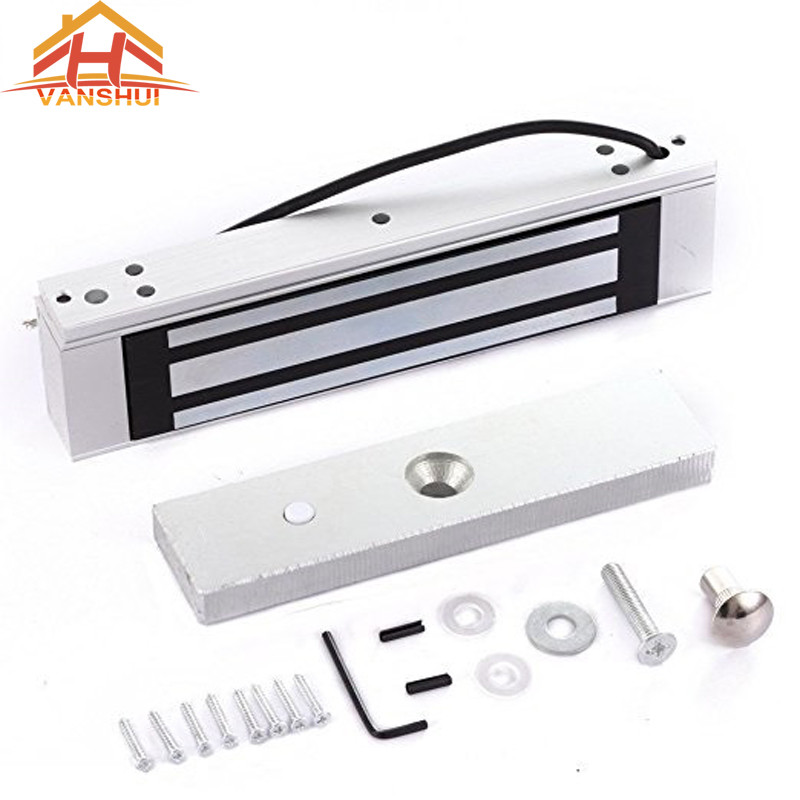

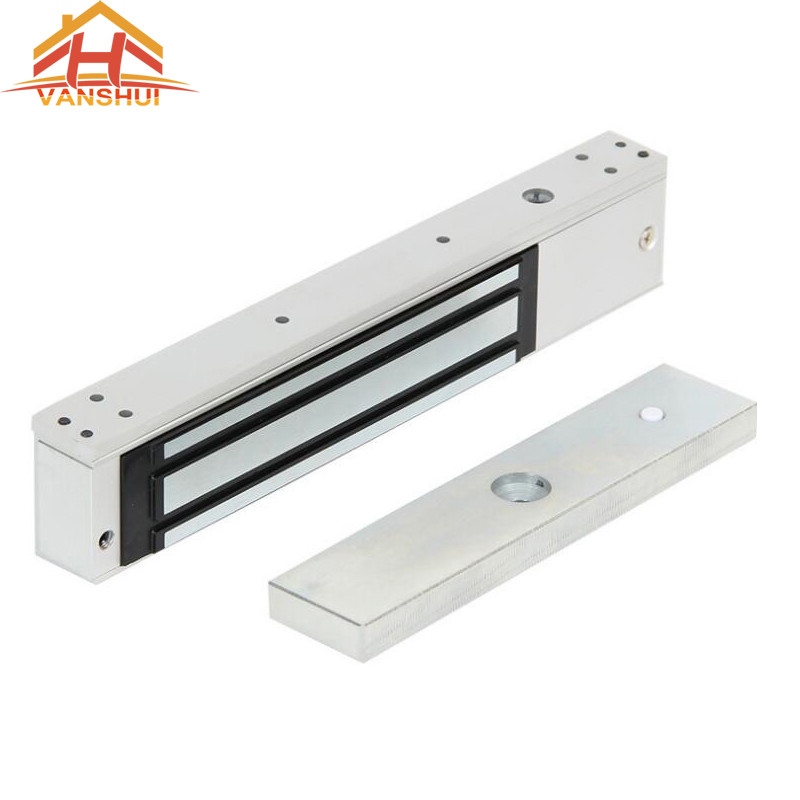

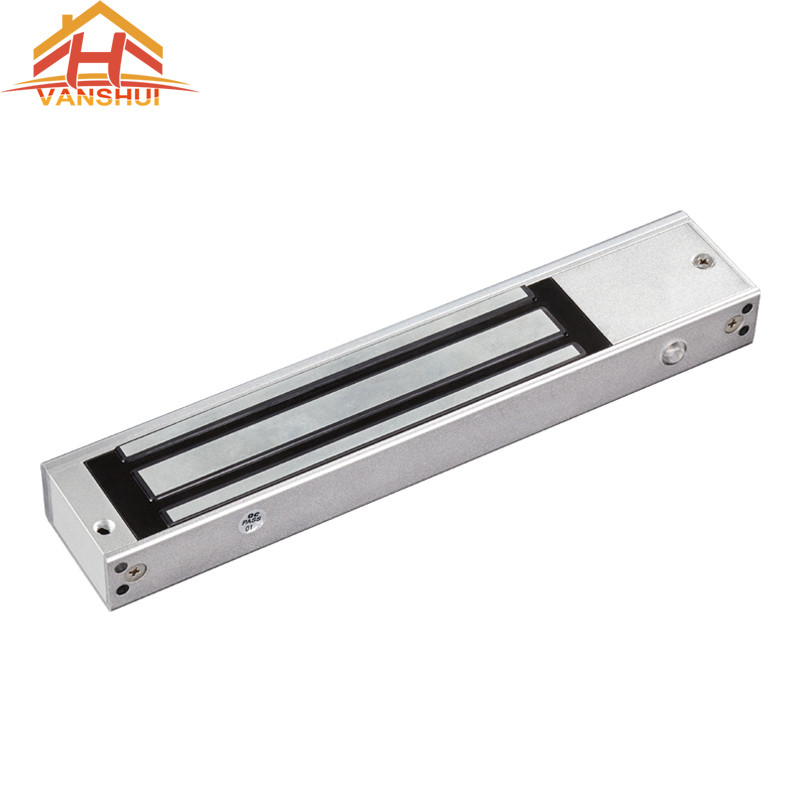

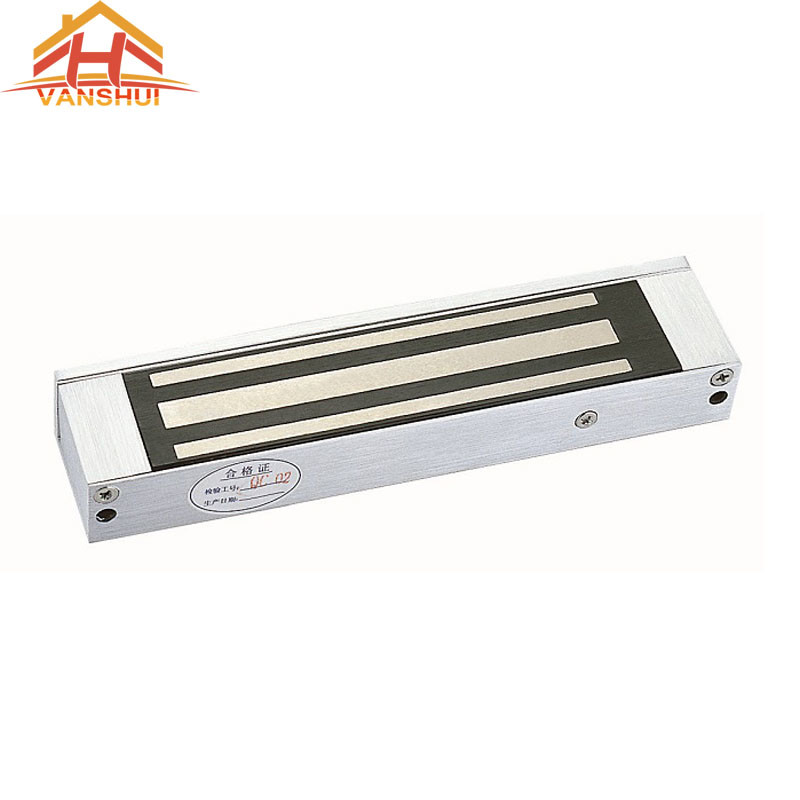

Small Electric Lock for Access Control System 150KG or 330LBS Holding Force
Waterproof Magnetic lock with 150KG holding force for single door
Specification
| Products Parameter | Magnetic Lock Parameter Description |
| Model | EM150A |
| Lock Size : | 168Lx38Wx23H(mm) |
| Package: | 230Lx80Wx30H(mm) |
| Armature plate: | 190Lx190Lx45Wx11H(mm) |
| Holding Force | 150kg (330Lbs) |
| Input Voltage : | 12VDC or 24V |
| Suitable for door: | Wooden door , Glass door(no frame door) ,Metal door , Fireproof door |
| Opening Mode: | Swinging door 90 degree |
| Signal Output : | Lock signal Status NO/NC/COM/+/- |
| Feature: | Power to lock or Timer delay, With LED |
| Environment |
Operation temperature: -20°C ~ 55°C normal atmospheric temperature+8°C |
| Bracket selection (optional) |
No frame door can choose U type, Z type and L type |
| Weight | 1KGS |
Features
- Collinear Load Test 150KGS 330LBS.
- Dual Voltage 12 or 24 VDC(optional).
- The Standard Voltage is 12VDC when finished.
- MOV Provides Reverse Current Protection.
- Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
- LED Indicates the door Status.
- Lock Status sensor(NO/NC/COM)
- Door Status sensor(NO/NC/COM)
- Anti-Residual Magnetism Designed.
- High Strength Material Anodized Aluminum Housing.
- Design without Mechanical Failure.
- Increase the holding Force, Dual Isolative Housing.
- CE Certificate by European Union, MA Certificate by China Public Security Office
EM Lock Types Fail Safe (Power to lock)
| Magnetic Lock Model | Holding Force | Suitable for door |
| EM150 | 150kg(330Lbs) | Wooden door , Glass door (no frame door) ,Metal door , Fireproof door |
| EM270 | 270kg (600Lbs) | |
| EM300 | 300kg(660Lbs) |
Bracket (Optional)
| Bracket Type | Description |
| EMJ150L | L type bracket for EM150 |
| EMJ150Z | Z type bracket for EM150 |
| EMJ150U | U type bracket for EM150 |
