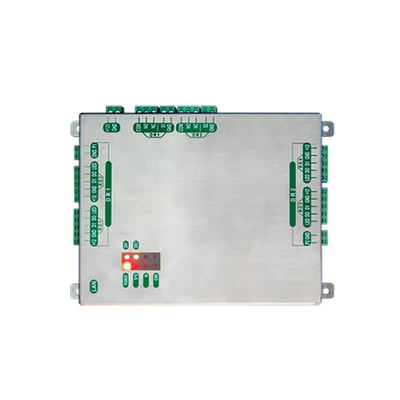

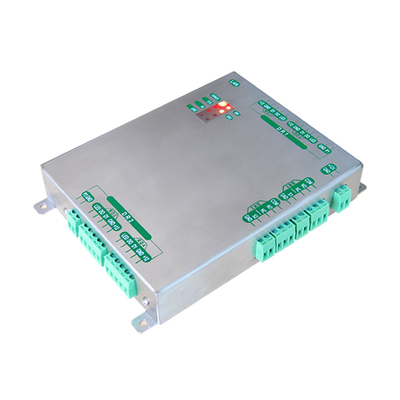

Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART)

  • Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART)
  • Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART)
  • Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART)
  • Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART)
  • Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART)
  • Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART)
Place of Origin SHANGHAI,CHINA
Brand Name VANSHUI
Certification CE,FCC
Model Number C2-SMART
Minimum Order Quantity 1pcs
Price Negotiation
Packaging Details Single package size: 17X14X4 cm,Single gross weight: 2.5 kg
Delivery Time 5-8 working days
Payment Terms T/T, Western Union,Paypal
Supply Ability 10000Pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Access Control Panel User Capacity 20,000
Logs Capacity 100,000 Reader Interface 4
Communication TCP/IP, Wiegand In/Out Wiegand Format Wiegand26-40
Working Temperature -35°to ~70°C Software Free
Highlight

door release button access control

,

home access control system
Leave a Message
Product Description
PRODUCT DESCRIPTION
Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART) 0
Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART) 1

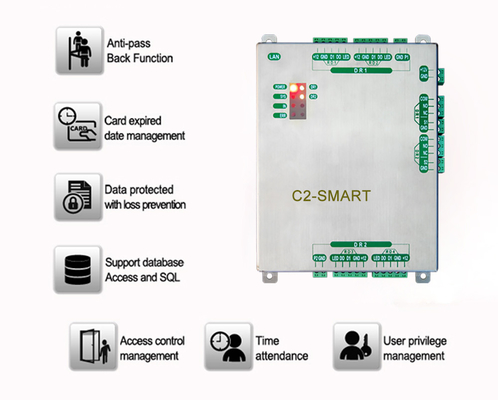

FEATURES
Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART) 2
SPECIFICATION
Model
C2-Smart
User
20,000
Event
100,000
Communication
TCP/IP
Reader Interface
4
Max of Doors Controlled
2
Input Port
4 (2 Exit Buttons and 2 Door Sensor)
Door Closing Delay
1-600 S
Running indicator
LED light
Transmission Distance
80-100M
Power Supply
DC12/4-7A
Static Current
50-100Ma
Working Temperature
-35 degree-70 degree
Operating Humidity
10%-90%
Wiegand Format
Wiegand 26/40 bit
Weight
1.0kg
Dimension
167*133*31mm
Software
Smart Access Control Management
Metal Box
Support (Optional)

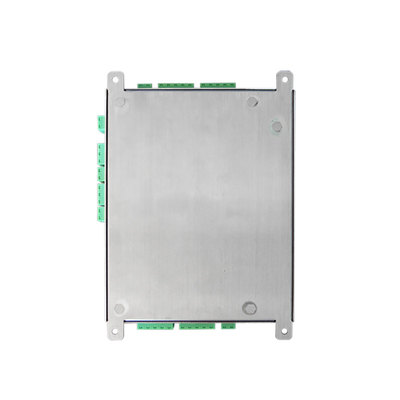

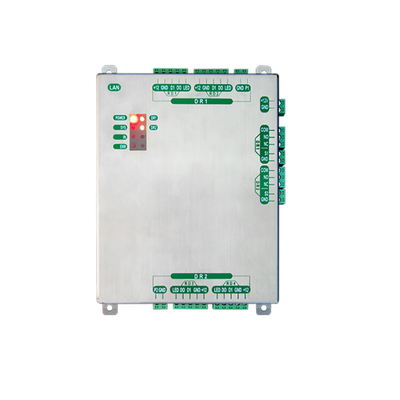

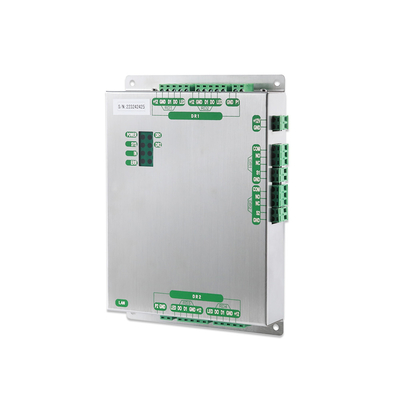

DETAILS
Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART) 3
Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART) 4
Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART) 5
Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART) 6
Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART) 7
Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART) 8
Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART) 9
Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART) 10
SOFTWARE
Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART) 11
Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART) 12
PRODUCTS PACKAGE
Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART) 13
COMPANY PROFILE
Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART) 14
Access control panel two doors control board TCP/IP WEB based access door control system (C2-SMART) 15
