Access Control Panel Work for Turnstile Machine Four Doors Controller With TCP/IP
Product Description

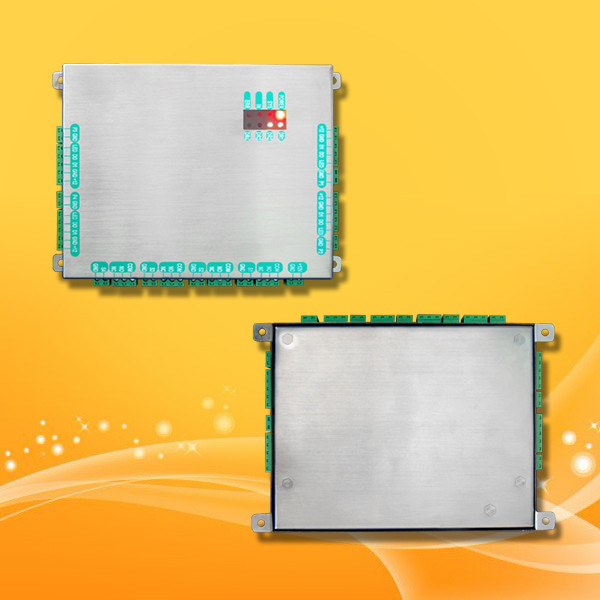

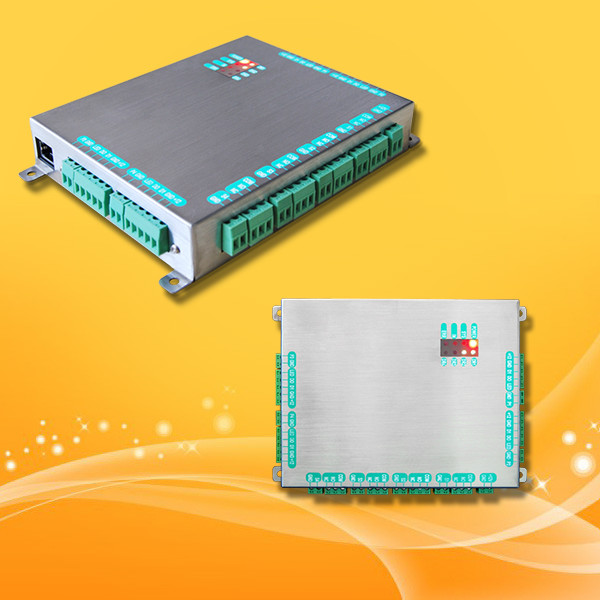

C4-Smart is an access smart controller which designed with full metal housing in small size.
This controller supports TCP/IP, installation is simple and convenient, user can manage all doors in one software. The industrial spare parts and high quality materials can make it run well under bad environment in temperature from -35℃ to 70℃, and power consumption is lower. Once power is off, it will activate data protected function, all information will be saved safely and timely.
Specification
| Model | C4-Smart |
| User | 20,000 |
| Event | 100,000 |
| Wiegand Format | Wiegand 26-40 bit |
| Weight | 1.0KG |
| Communication | TCP/IP |
| Reader Interface | 4 |
| Max of Doors Controlled | 4 |
| Input port | 8 (4 Exit Buttons and 4 Door Sensors) |
| Door Closing Delay | 1-600s |
| Power supply | DC12V/ 4-7A |
| Static current | 50-100mA |
| Working Temperature | -35℃~70℃ |
| Operating Humidity | 10% to 90% |
| Running indicator | LED light |
| Transmission distance | 80-100m |
| Dimension | 167*133*31mm |
| Software | Smart Access Control Management |
